Help CenterCylinder Mould for Paper Making Machine
Related Products

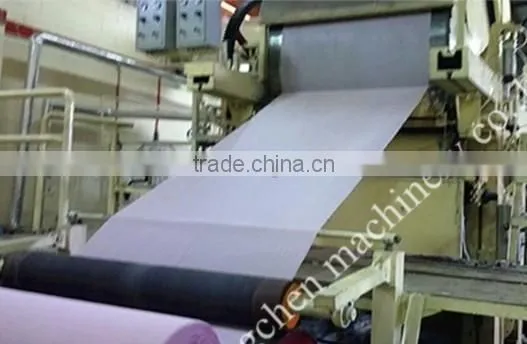

787mm small model toilet paper machine
1092mm 1-12TPD
I. Technical parameter:
1.output paper :tissue paper
2. raw material: waste paper
3.capacity: 0.8-1ton per day
4. net paper width:900mm
5.output paper weight: 13-40g/m2
6. rail gauge:1300mm
ing speed: 40-100m/min
8. drive way: Alternating current, speed control, section drive
Structure and characteristics:

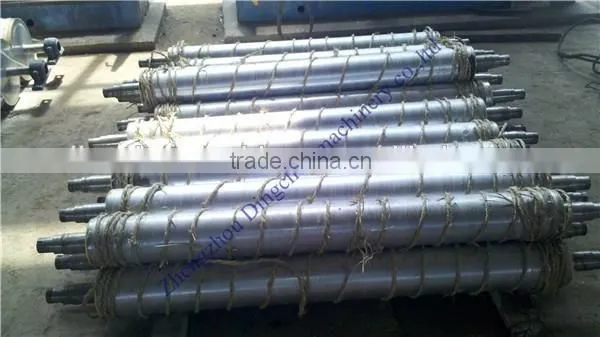

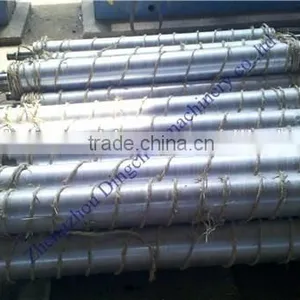

1. cylinder section:Φ1000mm×1100mm stainless steel cylinder mould 1set, Φ260mm×1100mm couch roll 1set,coated by rubber,rubber shore hardness 38°C±2.
2.dryer section:Φ1250mm×1100mm cast iron alloy dyer can 1 set, Φ300mm×1100mm touch roll 1set,1group scraper knife. rubber shore hardness 90°C±2.Mechanical pressure device.
3.paper cutting section: 787mm slitting machine1set .
4.drive and control section: Alternating current , speed control , section drive
II. All equipments:
NO. |
Item |
qty(set) |
1 |

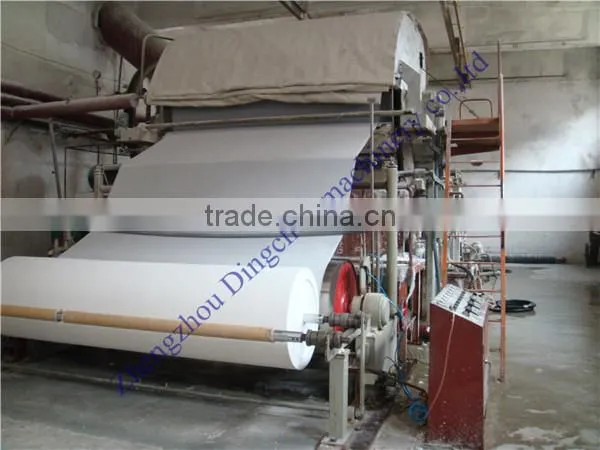

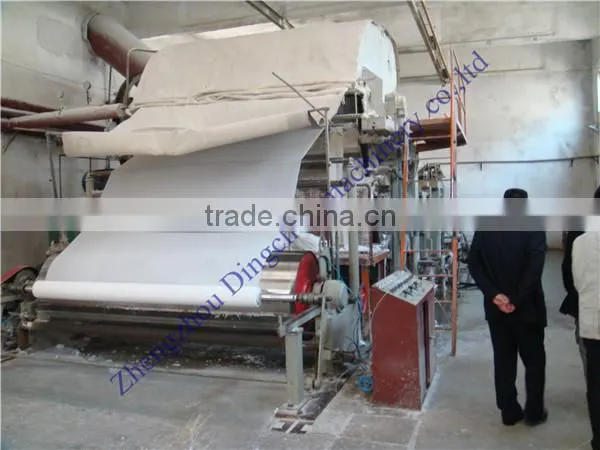

787mm tissue paper machine. |
1 |
2 |
exhaust hood of dryer can |
1 |
3 |
Φ500mm axial-flow ventilator |
1 |
4 |
1.5m3High consistency hydrapulper |
1 |
5 |
0.8m2 High frequency vibrating screen |
1 |
6 |
Φ250mm pulp refiner |
1 |
7 |
Φ500mm Thruster |
2 |
8 |
Sand remover |
3 |
9 |
Suction box |
1 |
10 |
25m3bleacher |
1 |
11 |
4 inch Pulp pump |
5 |
12 |
Vertical mixer |
2 |
13 |
33roots vacuum pump |
1 |
14 |
787mm slitting machine |
1 |
15 |
Electricity control cabinet (Siemens of China) |
1 |
16 |
0.5T boiler(burn coal) |
1 |
