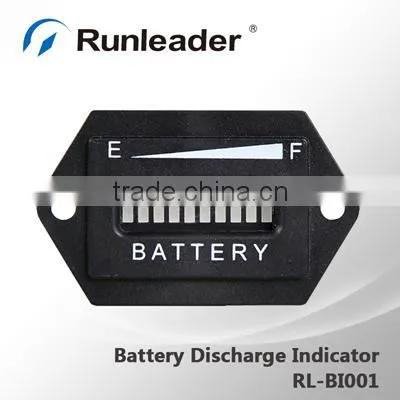

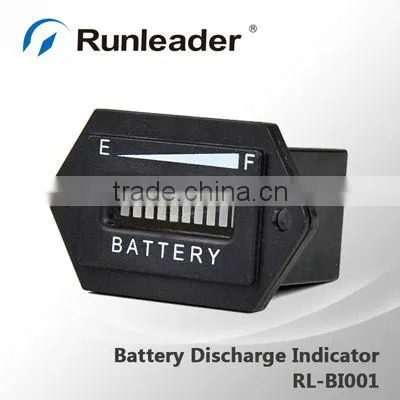

Battery Charge Indicator 12V 24V 36V 48V 72V for Lead Acid Storage Battery

Name: Battery Charge Indicator 12V 24V 36V 48V 72V for Lead Acid Storage Battery
Brand: Run leader
SKU: 103000781

US$ 7.5 - 10 MOQ: 20 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Run leader

Model Number:

RL-BI001

Ningbo Jiangbei Run Leader Electronics Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Run leader

Model Number RL-BI001

Specifications

1.Battery charge indicator
2.Excellent quality
3.OEM services provided
4.Fast delivery

Product Description

Digital LED State Battery Charge Indicator For general acid lead storage battery Golf Cart, motorcycle,boat 12V&24V,24V,36V,48V,72V

Voltage:12V&24V,24V,36V; 48V,72V(Please tell me which voltage you want before you buy )

This product can be used on lead-acid battery now.If other battery,it need your specification to customise.

Application

Used for forklift trucks, Golf Carts, RV's, Boats, Scooters and electric vehicle. car etc

For use on any equipment where the battery status is important. It is specifically designed for battery power equipment to

monitor the charge status of the battery or batteries.

Specification

Technical parameters:

Display:	10-bar LED indicates the battery state of discharge.
Terminals:	Max. 3; 3/16”-spades
Mounting:	U-shape bracket
Panel Cutout (mm):	37x25mm
Operating Temperature:	-40°C to +85°C
Storage Temperature:	-50°C to +90°C
Humidity: Operating	95% RH (Non Condensing) at 38°C
voltage:	12V&24V,24V; 36V; 48V,72V
Battery indicating range can be customized (e.g. 2.04Vpc at full, 1.73Vpc at empty). EEPROM memory
