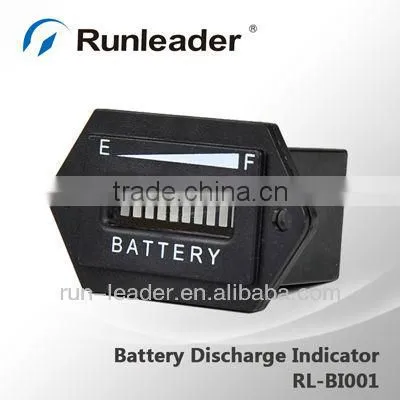

12V 24V 36V 48V 72V LED Battery Charge DISCHARGE Indicator for acid lead storage battery car golf carts from China Manufacturer

Specifications

1.LED display Battery indicator made in China
2.Excellent quality
3.OEM ODM services provided

battery indicator

Digital LED State Battery Charge Indicator For acid lead storage battery Golf Cart, motorcycle,boat 12V&24V,24V,36V,48V,72V



Voltage:12V&24V,24V,36V; 48V,72V(Please tell me which voltage you want before you buy )





Application



Used for forklift trucks, Golf Carts, RV's, Boats, Scooters and electric vehicle. car etc



For use on any equipment where the battery status is important. It is specifically designed for battery power equipment to



monitor the charge status of the battery or batteries.









Specification





Technical parameters:

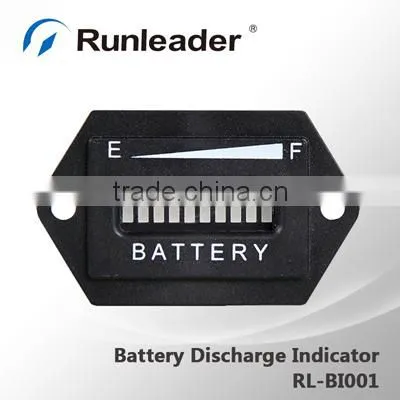

Display:	10-bar LED indicates the battery state of discharge.

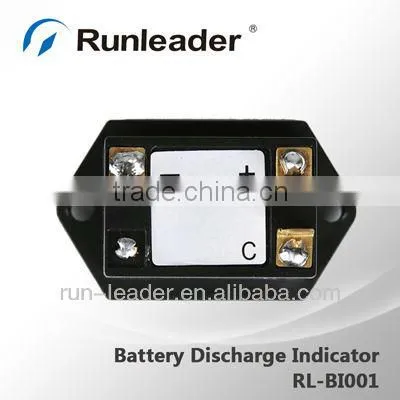

Terminals:	Max. 3; 3/16”-spades
Mounting:	U-shape bracket
Panel Cutout (mm):	37x25mm
Operating Temperature:	-35°C to +85°C
Storage Temperature:	-50°C to +90°C
Humidity: Operating	95% RH (Non Condensing) at 38°C
voltage:	12V&24V,24V; 36V; 48V,72V
Battery indicating range can be customized (e.g. 2.04Vpc at full, 1.73Vpc at empty). EEPROM memory











Competitive advantage

1. High reliability

2. Low cost and small size

3. Lower operating current

4. Wide operating voltage and temperature range

5. Solid state electronics

6. Quartz crystal



Available in 12, 24, 36, 48 and 72 volt DC ranges

10 segment LED Bar Graph display

Resolution: 10% per LED segment.

Current Draw: 3.2 mA LED Display off

15 mA with LED Display ON

Reverse Polarity Protected

0.187" faston tabs for easy hookup

LED enable input to save battery current

3 Discharge profiles available, plus Custom profiles

Power up to instant charge level, or traditional countdown

Memory option for last known level at power up

Overcharge protected (50% over nominal voltage)

Full charge indicated when the Top LED bar is lit (specified full charge voltage per cell is reached for a minimum of 6 minutes continuously).
