LED BATTERY INDICATOR

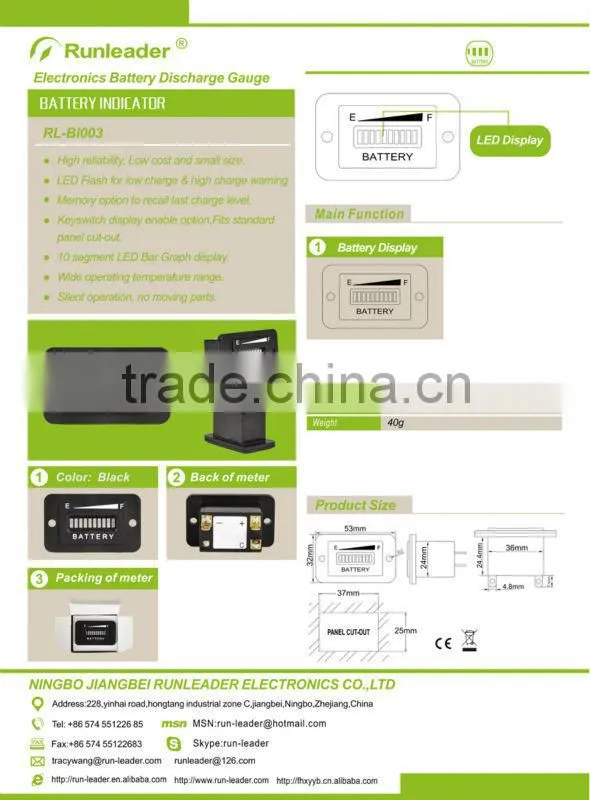

Specifications

LED BATTERY INDICATOR,RL-BI003,Solar System, Forklift, Golf Cart or other DC battery powered equipment

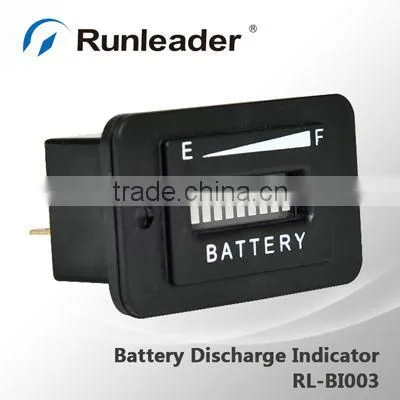

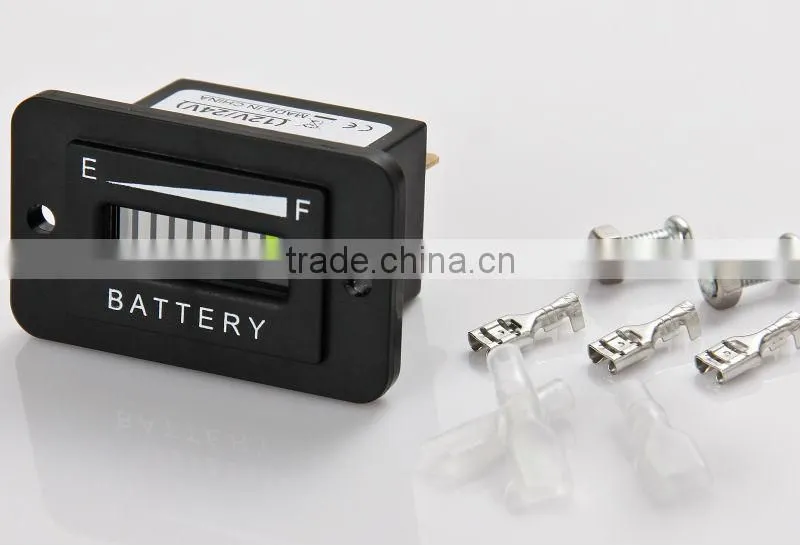

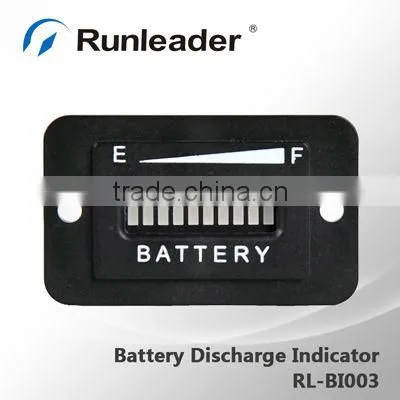

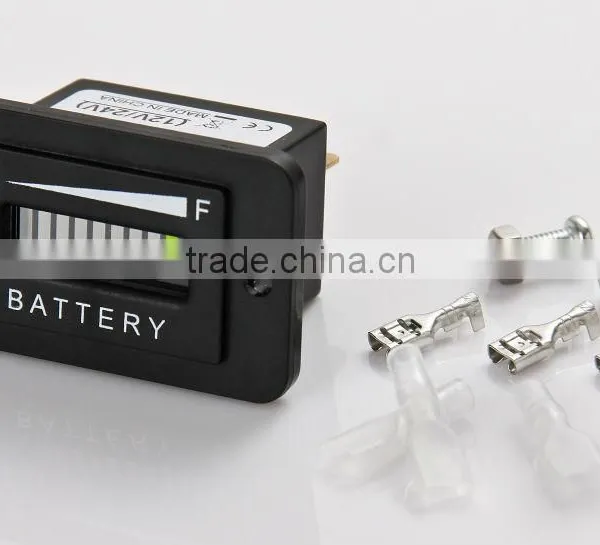

LED Battery indicator RL-BI003



Used for forklift trucks, Golf Carts, RV's, Boats, Scooters and electric vehicle. etc

For use on any equipment where the battery status is important. It is specifically designed for battery power equipment to monitor the charge status of the battery or batteries.



1.High reliability

2.Low cost and small size

3.Lower operating current

4.Wide operating voltage and temperature range

5.Solid state electronics

6.Quartz crystal





Display: 10-bar LED indicates the battery state of discharge.

Terminals: Max. 3; 3/16”-spades

Mounting: U-shape bracket

Panel Cutout (mm): 37x25mm

Operating Temperature: -40°C to +85°C

Storage Temperature: -50°C to +90°C

Humidity: 95% RH (Non Condensing) at 38°C

Operating voltage: 12V, 24V, 12/24V; 36V; 48V,72v

Battery indicating range can be customized (e.g. 2.04Vpc at full, 1.73Vpc at empty).

EEPROM memory
