Flexo label printing machine suitable to produce garment ribbon label, taffeta label, fabric label,satin label ,grasgrain label
1.Detailed Product Description
Functional characteristics of flexo label printing machine:
1) Fast speed: The highest speed is up to 1m/s;Tow or more coils of materials can be printed simultaneously,greatly increasing the production efficiency.
2) Large solid under color: large area of solid under color printing can be performed and solid printing can be achieved.Meanwhile,the whole side can be printed with equal effect.
3) Sufficient solid color : this is a relief printing machine.The printing directly contacts the printed product,clear character printed on various kinds of tapes,sufficient solid color.
4) Fast color: Using special ink,dry for fast color,the printed product features washing resistance and fast color.The printed products can bear severe wash and stone wash.It meets the European and USA standards of enviroment protection and free of toxin.It can be freely used.
5) Universal size :Printing for tapes with different length can be performed only by changing plate cylinder.Multi use of the machine can reduce repeated investment.
6) This machine is suitable for materials including :riband,cotton tape,rubber tape,nylon tape,paper tape and adhesive tape.
Product model |
Printing size |
Max./min,printing width |
Printing longness |
Power |
Dimension(L*W*H)mm |
Net weight(roughly) |
HFT-321 |
3color(2+1) |
max.150/min.3mm |
0-300mm |
220V/3.5KW |
1600*650*1700 |
400KG |
HFT-431 |
4color(3+1) |
max.150/min.3mm |
0-300mm |
220V/4KW |
1600*650*1700 |
500KG |
HFT-532 |
5color(3+2) |
max.150/min.3mm |
0-300mm |
220V/4KW |
1800*650*1700 |
550KG |
HFT-541 |
5color(4+1) |
max.150/min.3mm |
0-300mm |
220V/4KW |
1800*650*1700 |
650KG |
HFT-642 |
6color(4+2) |
max.150/min.3mm |
0-300mm |
220V/4KW |
2000*650*1800 |
650KG |
HFT-752 |
7color(5+2) |
max.150/min.3mm |
0-300mm |
220V/4.5KW |
2400*650*1900 |
750KG |
HFT-862 |
8color(6+2) |
max.150/min.3mm |
0-300mm |
220V/4.5KW |
2500*650*1900 |
800KG |
2. What is the main advantage of the machine?
1. Connecting rod ink distributing roller can run at a high speed with average distribution. | ||||
|
2. With automatic oiling and transmission lubricating system, the machine has longerperformance life. | ||||
|
3. The main electric motor takes the advantage of alternate frequency ones, offering stable currency and saving energy. | ||||
|
4. The electrical eye controls feeding. The machine will automatically stops if the materials are used up. | ||||
5. Printing length is counted by value input automatically. |
Turn on key base offer.
3. Why choose Hongfat?
The best choice for turn on key offer.
3.1 Hongfat can really help you to set up the coating factory from zero, no matter
machine production, installing, training for operator, maintenance, raw
material supplier identify and business convoy.
3.2 He can lend you English-speaking operator.
3.3 Some machine is 3 years’ guarantee.
3.4 English-speaking engineers have the experiences of serving more
than 20 countries.
They are many company which is much bigger than Hongfat, they are
many company who can make good machine as Hongfat. Especially,
when we talk about machine, we like to say German machine is good.
While after they get your money, few of them can really be patience
to set up your business from Zero. Especially when your request seems
out of their duty,Especially the job is beyond the duty of machine seller.
If you have good experience already and just want good machines. Hongfat
is one of your choice. If you want to set up the coating factory from
Zero, Hongfat is your only choice.
4. Machine guarantee?
2 years

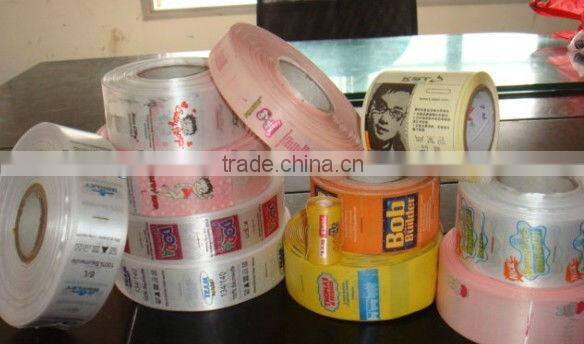

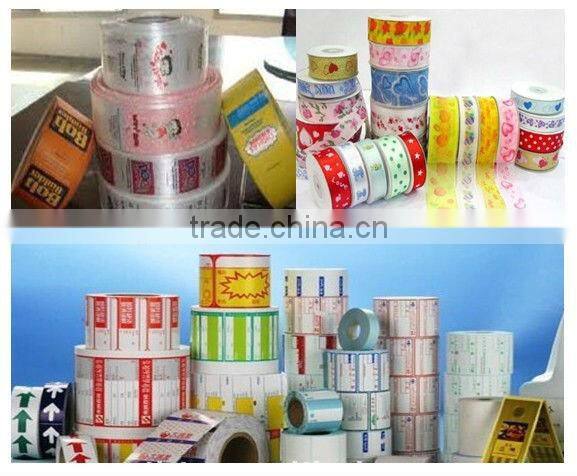

5. Sample produced by the machine
8. Factory view and export loading
9. Fair in overseas
