QSGC-1000-1200 automatic UV glazing machine
QSGC model UV glazing machine is a high-tech procuct with light, machine,eletricity and gas, QSGC model UV glazing machinecan be used for both thick and thin paper, realizes whole-course automation and adopts belt conveying with high speed and efficiency. The machanical speed adopts variable frequency step less speed regulation and can reach maxumum speed of 60 m/min. QSGC model UV glazing machine has independent space for every working station and it can be assemble bases the client request, so QSGC model UV glazing machine is suitable for being used in large printing enterprise.

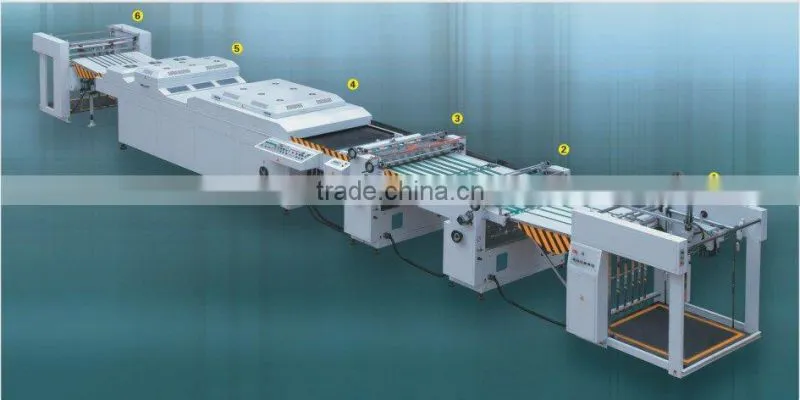

a) automatic feeder
- Double-sheet controller. Automatic machine stop function
- Up and down limitation protection
- High reliability paper transfer sucker
b) three rollers water powder removing
- apply water cycle and special rubber surface to cling the dust
- adjust pressure to run the powder removing
c) UV coating unit(with air knife equipment)
- paper winding malfunction emergency stop and warning system.

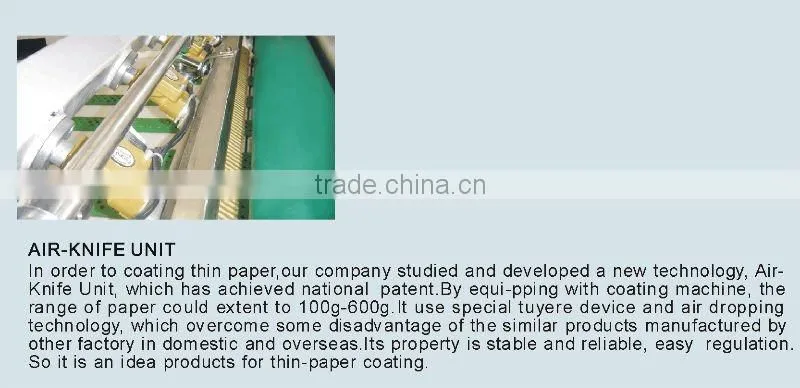

- According the thin paper is difficult to be coated, our factory specially research the air-knife equipment, it belongs to selection unit. It makes the range of paper can extent to 80g-600g. the air-knife unit has achieved national patent. the air-knife unit is controlled by two groups electric eyes, when the thin paper get through the coating rotary drum and pression rotary drum, thin paper is very easy to adsorb the rotary drum,and at the moment air-knife unit erupt the gases to make paper break away form the rotary drum. After that the thin paper can be delivered by the conveyor belt smoothly.
- Low speed inch move adjustment
d) IR drying system
- automatic rectification system of transport belt
- automatic temperature adjustment system
- IR tunnel lifting mechanism by cylinder
e) UV solidify system
- exhaust system control by program
- UV transfering net stop and automatic extinguish function. Light case automatic lift
- Transferring belt rectify automatically
f) automatic delivery
- thin paper guiding equipment and mechanical side layer
- photocell sensor automatic down.
QSGC model UV coating machine |
1200 |
1000 |
720 |
Max.width |
910*1140 |
910*1140 |
650*546 |
Min.width |
406*340 |
406*340 |
406*340 |
Fit paper |
80-60g |
80-60g |
80-60g |
Max paper feeding speed |
5000p/h |
5000p/h |
5000p/h |
Max work speed |
60m/min |
60m/min |
60m/min |
Infrared |
18kw |
18kw |
12.75kw |
Ultraviolet |
24kw |
24kw |
16.8kw |
Coating machine, UV coating machine, glazing machine, varnishing machine, lustering machine, UV machine.
