China supplier competitive price low loss RG179 coaxial cable, RG 179coaxial cable, RG179 siamese cable
Construction & Basic Characteristics

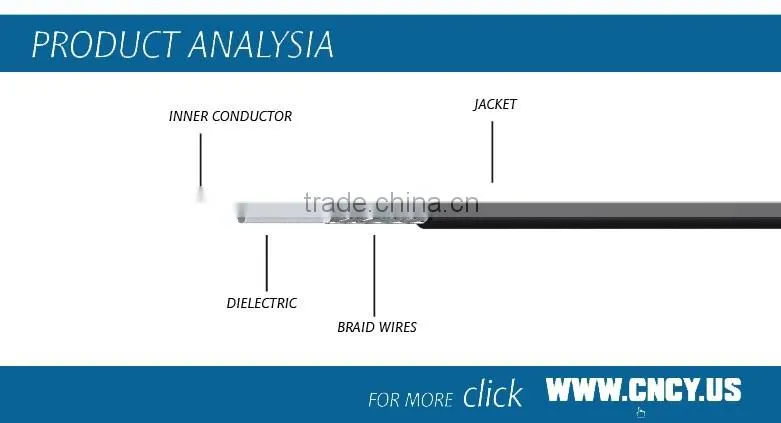

1) Construction | ||
Center Conductor: |
7*0.1mm(0.48mm) SC/TS |
|
Dielectric: |
1.6mm±0.05mm PE |
|
Shield: |
SC Braiding |
|
Braid Coverage: |
95% |
|
Jacket: |
2.54±0.10mm PVC |
|
Jelly/APD |
Per Customer’ Special Requirement |
|
2) Characteristics | ||
Sparker Test: |
4000VAC |
|
Impedance: |
50±2 Ohm |
|
Capacitance: |
64±3pF/m |
|
Velocity of Propagation: |
69.5% |
|
Return Loss: |
22dB min (5-1000MHz) |
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 ft.) |
Maximum (dB/100 m) |
10 |
/ |
/ |
100 |
7.66 |
26.8 |
400 |
15.69 |
54.9 |
1000 |
25.23 |
88.3 |
2000 |
/ |
/ |
3000 |
/ |
/ |
Length: 100m/200m/305m/500m, according to your requirements;

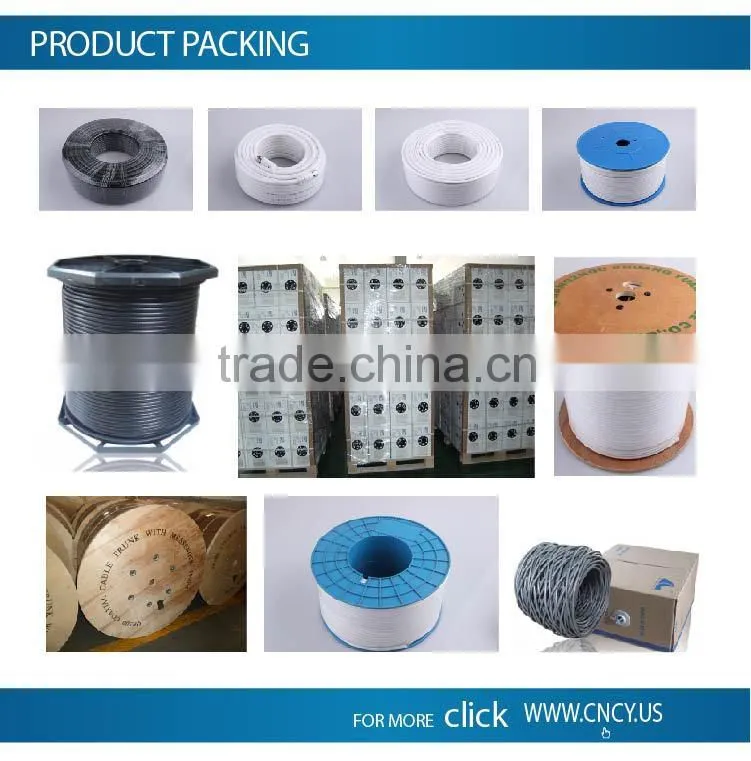

Packing: coil/ paper reel/plastic reel/wooden drum, ect.
1.OEM Available
2.ISO9001/CE/RoHS Approved
3.Good quality with best service
4.Free Sample
5.Fast delivery
