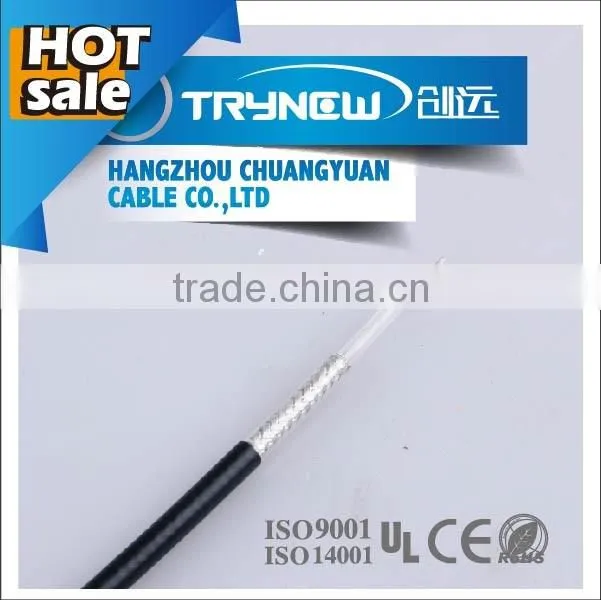

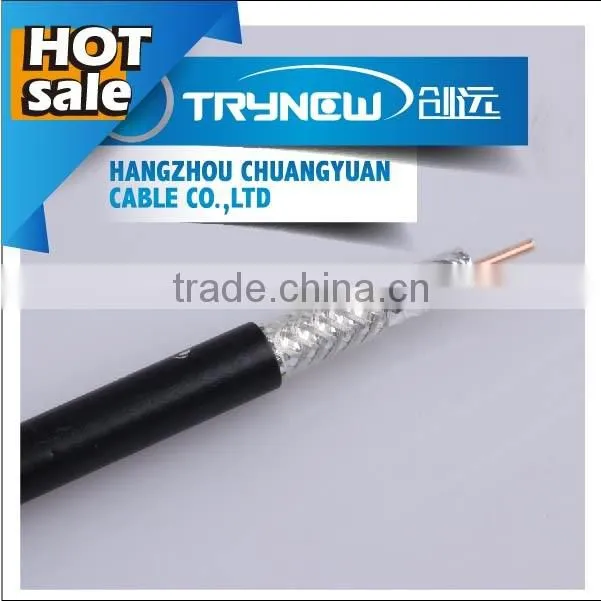

Better Quality and Favorable Price CATV/CCTV Coaxial Cable RG11

FOB Price

US$ 0.1 - 1 / Meter

10 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

HIGH QUALITY CUSTOMZIED COAXIAL CABLE

Product Description

RG6

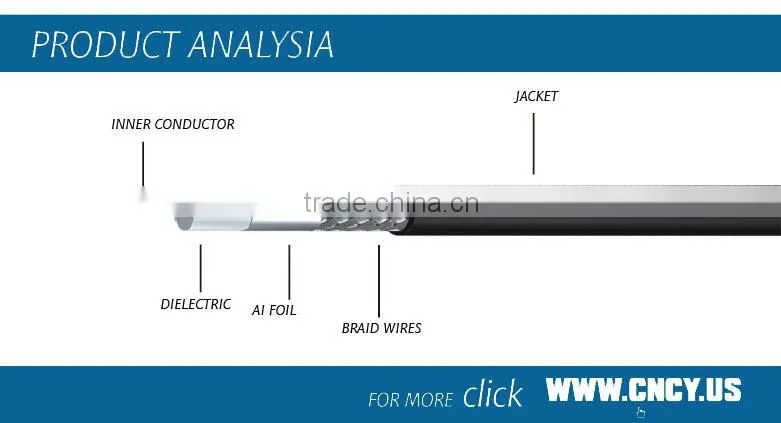

) Construction
Center Conductor:	1.02±0.01mm CU/CCS
Dielectric:	4.57±0.1mmFoam PE
Shield:	Al Foil
Braid Coverage:	40%-95%Al-Mg
Shield:	Al Foil
Braid Coverage:	40%-95%Al-Mg
Jacket:	7.62±0.1mm PVC/PE
UL:	CMX, CM, CATV, CL2
Jelly/APD	Per Customer’ Special Requirement
2) Characteristics
Sparker Test:	4000VAC
Impedance:	75±3 Ohm
Capacitance:	50±3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-1000MHz)
Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.58	1.9
55	1.6	5.25
187	2.85	9.35
300	3.55	11.64
450	4.4	14.43
600	5.1	16.73
750	5.65	18.54
865	6.1	20.01
1000	6.55	21.49

RG11

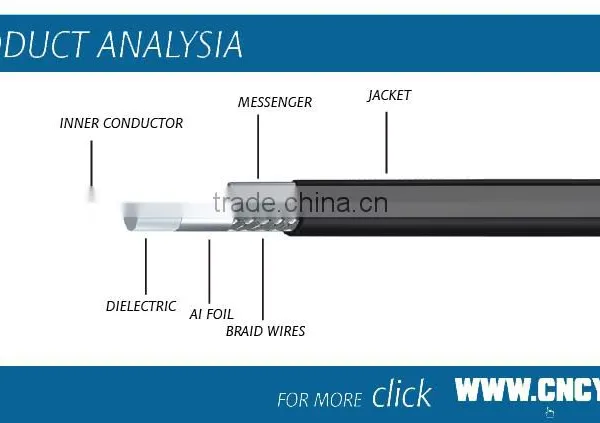

1) Construction
Center Conductor:	1.63±0.01mm CU/CCS
Dielectric:	7.11±0.1mmFoam PE
Shield:	Al Foil
Braid Coverage:	40%-95%Al-Mg
Jacket:	10.16±0.1mm PVC/PE
Jelly/APD	Per Customer’ Special Requirement
2) Characteristics
Sparker Test:	4000VAC
Impedance:	75±3 Ohm
Capacitance:	50±3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-1000MHz)
Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.38	1.25
55	0.96	3.15
250	2.05	6.72
300	2.25	7.38
450	2.75	9.02
600	3.18	10.43
750	3.65	11.97
865	3.98	13.05
1000	4.35	14.27

Hot Sale Products

75 OHMS

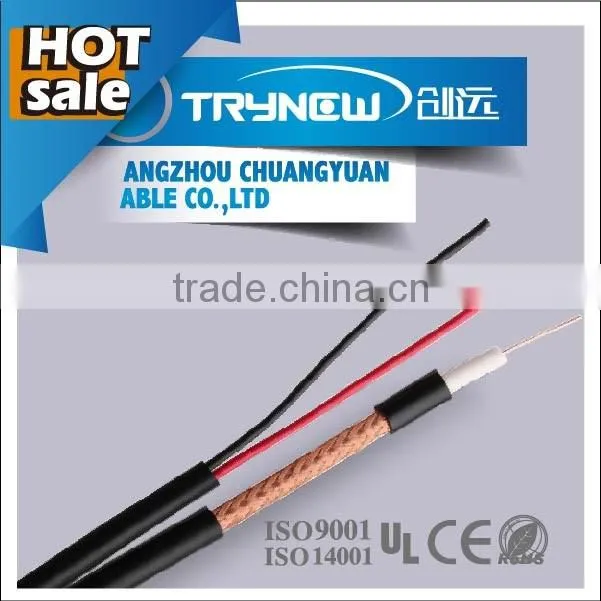

RG59 RG6 RG59/RG6 with power RG11

50 OHMS

RG58 RG213 RG214 8D-FB

Packaging & Shipping

Length: 100m/200m/305m/500m, according to your requirements;

Packing: coil/ paper reel/plastic reel/wooden durm, ect.

Our Services

1.OEM Available
2.ISO9001/CE/RoHS Approved
3.Good quality with best service
4.Free Sample

5.Fast delivery
