High Quality Factory Prices 75ohm High Quality Good Quality Outdoor Coaxial Cable Rg11(ul)

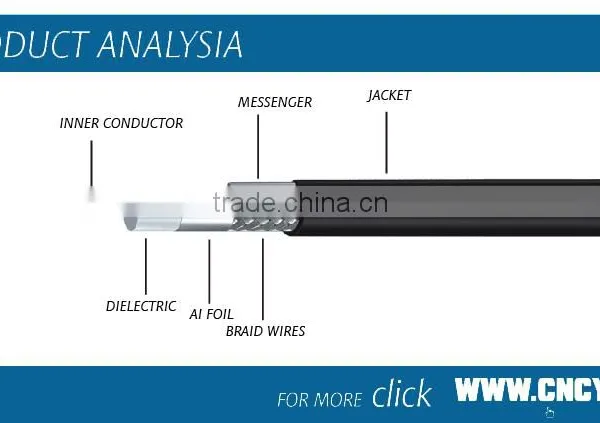

) Construction

Center Conductor:

1.02±0.01mm CU/CCS

Dielectric:

4.57±0.1mmFoam PE

Shield:

 Al Foil

Braid Coverage:

40%-95%Al-Mg

Shield:

 Al Foil

Braid Coverage:

40%-95%Al-Mg

Jacket:

7.62±0.1mm PVC/PE

UL:

CMX, CM, CATV, CL2

Jelly/APD

Per Customer’ Special Requirement

2) Characteristics

Sparker Test:

4000VAC

Impedance:

75±3 Ohm

Capacitance:

50±3pF/m

Velocity of Propagation:

85%

Return Loss:

20dB min (5-1000MHz)

Attenuation

[@68o F. (20o C.)]

Frequency (MHz)

Maximum (dB/100 ft.)

Maximum (dB/100 m)

5

0.58

1.9

55

1.6

 5.25

187

 2.85

 9.35

300

 3.55

 11.64

450

 4.4

 14.43

600

 5.1

 16.73

750

 5.65

 18.54

865

 6.1

 20.01

1000

 6.55

 21.49

1) Construction

Center Conductor:

1.63±0.01mm CU/CCS

Dielectric:

7.11±0.1mmFoam PE

Shield:

Al Foil

Braid Coverage:

40%-95%Al-Mg

Jacket:

10.16±0.1mm PVC/PE

Jelly/APD

Per Customer’ Special Requirement

2) Characteristics

Sparker Test:

4000VAC

Impedance:

75±3 Ohm

Capacitance:

50±3pF/m

Velocity of Propagation:

85%

Return Loss:

20dB min (5-1000MHz)

Attenuation

[@68o F. (20o C.)]

Frequency (MHz)

Maximum (dB/100 ft.)

Maximum (dB/100 m)

5

0.38

1.25

55

0.96

3.15

250

2.05

6.72

300

2.25

7.38

450

2.75

9.02

600

3.18

10.43

750

3.65

11.97

865

3.98

13.05

1000

4.35

14.27
