Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > C52125 CE Double Column Conventional Heavy Duty Vertical Lathe Machine

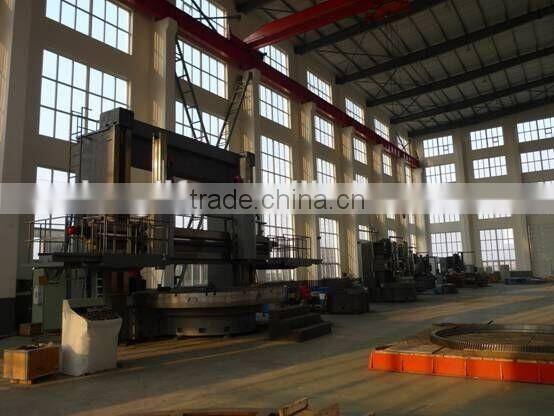

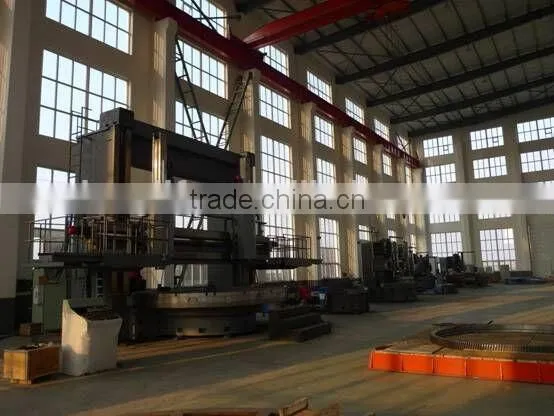

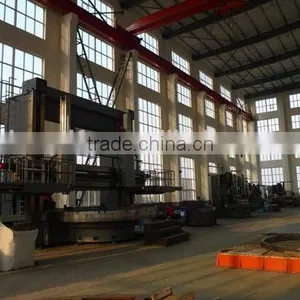

C52125 CE Double Column Conventional Heavy Duty Vertical Lathe Machine

US$ 660,500 - 750,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 12500mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number C52125 double column vertical lathe

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Power(W) 132kW

Dimension(L*W*H) depends

Weight 250 tons

Certification CE Certificate; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

C52125 conventional double column vertical lathe

Main Features

Such conventional double column vertical lathe has following features:

1. double column vertical lathe;

2. CE Standard and CE Certificate;

3. such vertical lathe is suitable for turning the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capacity and high speed steel tools.

4. Working table adopts hydrostatic guide way.

5. Gear case is to use 40Cr gear wheel of gear grinding, high precision, little noise.

6. Centralized lubricating oil supplying is convenient.

Main Usage

1. I.D. & O.D. cylindrical turning,

2. end-facing,

3. I.D. & O.D. cone turning,

4. grooving,

5. threading;

Main Technical Data

Name	Unit	C52125 vertical lathe
Max. turning diameter	mm	12500
Max. working height of workpiece	mm	4000
Max. weight of workpiece		100
Table diameter	mm	7500
Speed range of table	(r/min	0.16~16
Speed-step of table		16
Max. torque of table	KN·m	640
Max. cutting resistance of right tool post	KN	80
Max. cutting resistance of left tool post	KN	63
Travel of right tool post (Horizontal)	mm	-50~6500
Travel of right tool post (Vertical)	mm
Travel of left tool post (Horizontal)	mm
Travel of left tool post (Vertical) (T-Ram)	mm	2520
Feed range and speed-step of tool post	mm/min
Rapid moving speed of tool post	mm/min	4000
Moving degrees limit of tool post		-15°~+30°
Power of main motor	kW	DC132
Weight of machine	T	250
