Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Catalogue of Conventional Dobule Column Vertical Lathe Machine

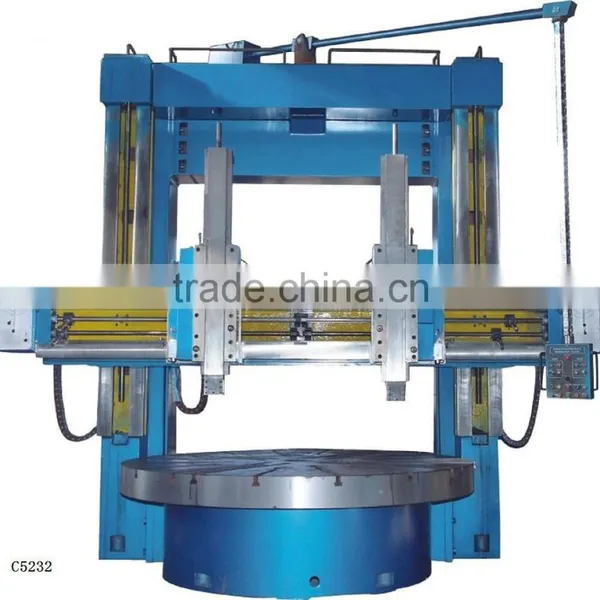

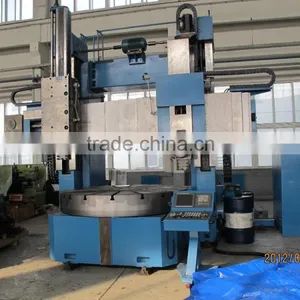

Catalogue of Conventional Dobule Column Vertical Lathe Machine

Catalogue of Conventional Dobule Column Vertical Lathe Machine photo-1

Catalogue of Conventional Dobule Column Vertical Lathe Machine photo-2

US$ 30,385 - 155,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 12500mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number C5225 C5232 C5240 C5250 C5263 C5280 C52100 C52125

Voltage 220V/380V/415V/440V/480V

Power(W) 15~132 kW in all

Dimension(L*W*H) Depends

Weight Depends

Certification CE; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

double column vertical lathe Technical Data

Main Features

Such double column vertical lathe has following features:

1. double column vertical lathe;

2. with DRO and CE Certificate;

3. such vertical lathe is suitable for turning the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capacity and high speed steel tools.

4.Main bodies of the machine are made of high rigid resin sand castings with thermal aging treatment. Steel parts are thermal refined.

5.The machine adopts a stable rigid structure and consists mainly of base, table, column, cross rail, tool head, hydraulic system and electric system. Cross rail moves up and down along guideways of the column.

Main Technical Data

Specifications	Unit	C5225	C5232	C5240	C5250	C5263	C5280	C52100	C52125
Max. turning diameter	mm	2500	3150	4000	5000	6300	8000	10000	12500
Max. working height of workpiece	mm	1600	2000	1600	2000	3000	4000	4000	4000
Max. weight of workpiece	T	10	10/30	10/32	30/50	50	100	100	100
Table diameter	mm	2250	2830	2830/3200	3600/4500	3800	5700/6000	7100	7500
Speed range of table	r/min	2~63	2~63	2~63	0.2~40	0.5~50	0.2~20	0.16~16	0.16~16
Speed-step of table	steps	16	16	16	16	16	16	16	16
Travel of right tool post (Vertical)	mm	1300~1500	1000~1500	1000~1500	1250~1600	1600~2000	2000	2520	2520
Travel of left tool post (Horizontal)	mm	1400	1735	2150	20~2630	3415	50~4400	50~4400	50~4400
Power of main motor	kW	55	55	55/75	75/75	75	DC132	DC132	DC132
