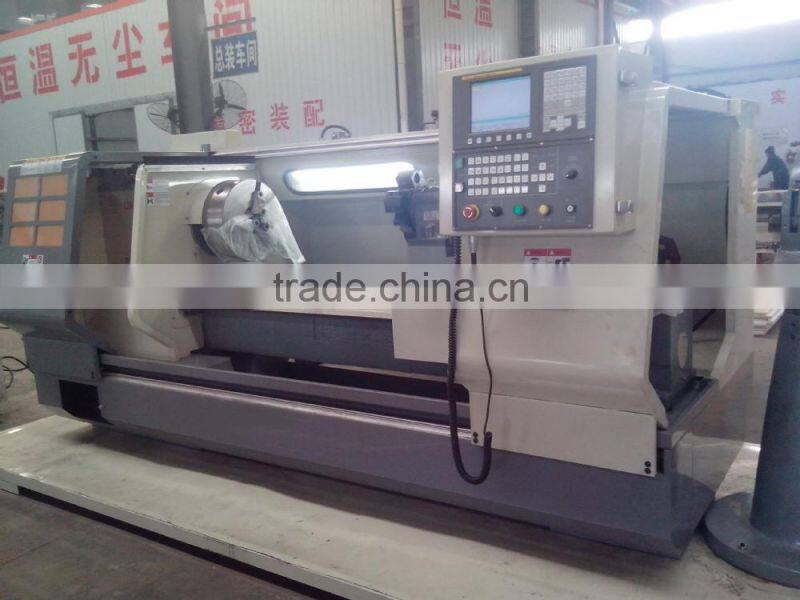

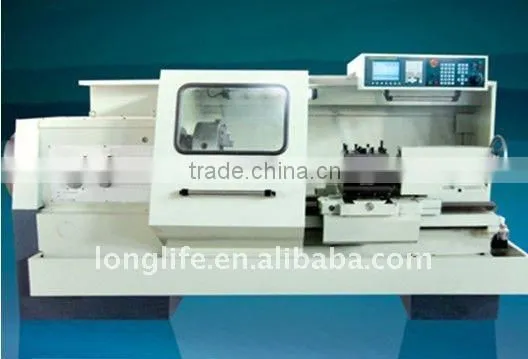

CNC Pipe Thread Lathe

Specifications

Unit

LFM1322 QK

LFM1327 QK

Max. cutting length

mm

1000

1500

Max. cutting diameter

mm

Φ220

Φ260

Max. swing over bed

mm

Φ630

Φ1000

Spindle bore diameter

mm

Φ225

270

Range of spindle speed

rpm

20~460(Manual)

16~500(stepless speed change)

16~380(Manual)

16~450 (stepless speed change)

Min. setting unit of X/Z-axis

mm

0.001

0.001

Main motor power

kW

11

15

Cooling pump

kW

0.125

0.125

Tool stations

4

4

Max. travel of X-axis

mm

490

520

Max. travel of Z-axis

mm

420

1400

Rapid speed (X/Z axis)

m/min

6000

6000

Chuck diameter

mm

400

500

Positioning accuracy

mm

X: 0.030  Z: 0.040

X: 0.030  Z: 0.050

Repositioning accuracy

mm

X: 0.012  Z: 0.020

X: 0.012  Z: 0.025

Net weight of machine

kg

5000

6000

Overall dimensions of machine (L x W x H)

mm

3600×1600×1800

3600×1750×1900
