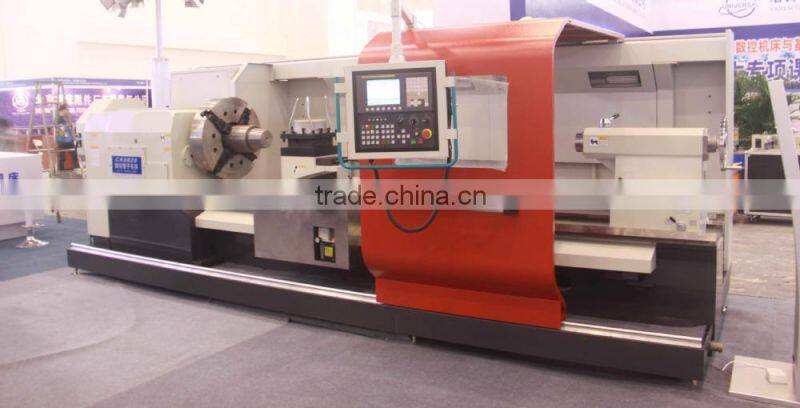

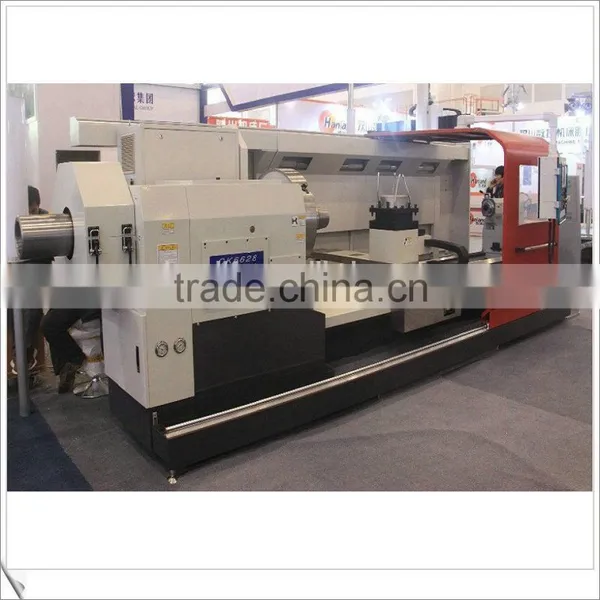

CK6628x2000 cnc oil pipe threading lathe machine
Such cnc oil pipe threading lathe is mainly used for processing all kinds of pipe threads:
including inner, outer, taper, metric and inch thread etc.,
and also undertake various turning works such as inner and outer cylindrical surface, conical surface and end surfaces.
l All main components, bed, headstock, saddle, plinth, etc., are high quality solid castings;
l Low friction turcite-B coating on mating surfaces between saddle and guide ways;
l Precision ballscrews and highly rigid precision bearings ensure accurate positioning and heavy cutting capability;
l Centralized system provides forced automatic lubrication onto ballscrews and all mating surfaces;
l Operator adjustable control panel enables convenient tool setting; FANUC, SIEMENS, FAGOR, etc control systems can be supplied. E-handwheel function is also available.
Specifications |
Unit |
Parameter |
Max. Swing over bed |
mm |
1,000 |
Max. Swing over carriage |
mm |
640 |
Range to turning diameter of pipe |
mm |
50 to 280 |
Max. Length of work-piece |
mm |
2,000 |
Max. Length to be turned |
mm |
1,700 |
Max. Supporting weight between two centers |
Kg |
4,000 |
Width of bed |
mm |
600 |
Diameter of spindle inner hole |
mm |
280 |
Range of spindle speed |
|
2 steps; automatic infinitely variable 6.3 to 450 r.p.m |
Diameter of chuck |
mm |
720 |
Turret type |
|
Vertical 4 positions |
Size of tool |
mm |
32×32 |
Ball leadscrew |
|
made by China |
Travel of X-axis, cross travel |
mm |
600 |
Rapid traverse of X & Z axis |
mm/ min |
X: 4000; Z: 6000 |
Feed range of X-axis |
mm/min |
1 to 2000 |
Feed range of Z-axis |
mm/min |
1 to 2000 mm/min |
Threading range |
mm |
1 – 200 |
Torque of X & Z-axis |
Nm |
22/ 22 |
Max. Movement of tailstock sleeve |
mm |
250 |
Diameter of tailstock sleeve |
mm |
120 |
Taper hole of tailstock sleeve |
|
Mores no. 6 |
Power of main motor |
KW |
AC18.5 |
Inverter for adjusting speed of motor |
|
China brand |
Movement of tailstock |
|
Manual |
Power of motor of oil pump |
KW |
1.5 |
Power of cooling motor |
KW |
0.55 |
Type of control system |
|
SIEMENS 808/FANUC 0i mate |
Name |
Size |
Note |
Manual four jaws chuck |
diameter of 720 mm |
2 sets |
Steady rest, |
range 50 to 470 mm |
1 set |
Lighting device |
|
1 set |
Hydraulic unit |
|
1 set |
Automatic lubrication system |
|
1 set |
Dead center |
|
2 pieces |
Center sleeve |
|
1 piece |
Foundation bolts and leveling pads |
|
1 set |
Full set of Documents in English |
|
1 set |
