Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Horizontal Pipe Thread Lathe With CE

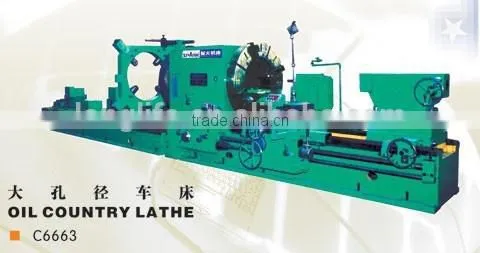

Horizontal Pipe Thread Lathe With CE

Name: Horizontal Pipe Thread Lathe With CE
Brand: DALIAN
SKU: 102720357
Availability: InStock

Horizontal Pipe Thread Lathe With CE thumbnail-1

Horizontal Pipe Thread Lathe With CE photo-1

US$ 26,434 - 90,400 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Manual

Max. Swing Diameter 1400mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number CW6636 CW6646 CW6663

Voltage 3Ph 220V/380V/415V/440V/480V 50/60Hz

Certification CE Certificate; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

Main Technical Specifications

Introduction:

designed to meet the special requirements of users in the petroleum, geological, mining and chemical ndustries, and in agricultural irrigation and dranage. It is able to cut various straght and taper pipe threads of union joints,drill rods,casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe. However, it may serve as an engine lathe to cut various metric, Whitworth and module threads, shafts and disks. After all it is an ideal machine for the petroleum, mining geological, chemical and agricultural industries.

Item	Unit	CW6636	CW6646	CW6663
Max. swing .overbed	mm	Φ1000	Φ1200	Φ1400
Max. swing over turret	mm	Φ640	Φ800	Φ1100
External dimension of pipe turning	mm	Φ60~φ340	Φ100~φ355	Φ200~φ600
Spindle bore	mm	Φ360	Φ460	Φ635
Range of spindle speed	rpm	6.3~315	6.3~315	5~250
Chuck diameter	mm	Φ1000	Φ1000	Φ1250
Min. clamping diameter of chuck	mm	Φ240	Φ260	Φ500
Metric thread	mm	44	44	1~120
Inch thread	TPI	37	37	30~11/8teeth
Module threads	mm	46	46	0.5~60
Diametrical thread	D.P	46	46	0.5~60
Rapid traverse of turret	mm/min	3740	3740	1870
Max. machining length of taper the scale	mm/min	935	935	935
Turning taper		±1:4	±1:4	±1:4
Diameter of tailstock sleeve	mm	Φ160	Φ160	Φ160
Power of main motor	KW	22	22	30
