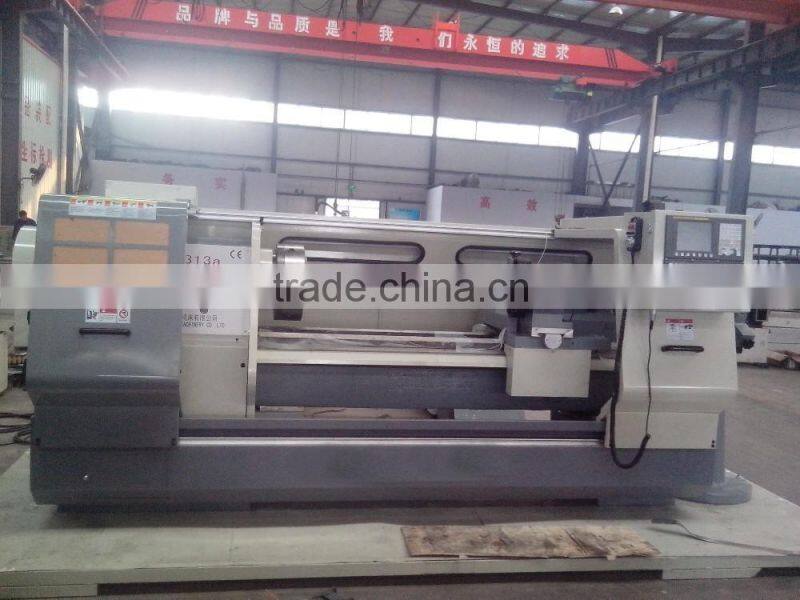

QK1320 Cnc Pipe Threading Lathe Machine With CE

US$ 37,500 - 41,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 640mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number QK1320x1500/3000 cnc pipe threading lathe machine

Voltage 7.5kW

Power(W) 3Ph 220V/380V/415V/440V/480V 50/60Hz

Dimension(L*W*H) 4200x2000x2000mm

Weight 6600kgs

Certification CE Certificate; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

QK1320 cnc pipe threading lathe machine

Main Technical Data

Specifications	Unit	Parameter
Max. swing over bed	mm	640
Width of the bed	mm	550
Spindle bore diametder	mm	200
Tube outside diameter	mm	60~190
Center distance	mm	1500/3000
Max. swing over crossslide	mm	330
Servo spindle speed	r/min	6~30/20~120/80~450
Servo main motor power	KW	15(50Hz)
Chuck OD/ ID	mm	500/200
Three-jaw chuck	mm	K11-500D
Distance between two chucks	mm	1600
Inch thread range and number of species(thread per inch)		0.1~254
Metric thread range and number of species	mm	0.1~400
X axis, Z axis max. travel	mm	380, 1400/480,3000
X axis, Z axis travel speed	m/min	3~5, 4~6
X axis, Z axis min. travel unit	mm	0.001, 0.001
X axis, Z axis repeatability accuracy	mm	0.016, 0.025
Tailstock sleeve diameter	mm	115
Tailstock sleeve taper		MT #6
Sleeve travel	mm	270
Arbor cross-section size	mm	32×32
4-station Electric tool post		LDB4-120(6163A) square turret: 240×240mm
Overall dimensions(L×W×H)	mm	4200×2000×2000 5700×2000×2100
Gross, wet weight	t	5.8, 5.6/6.8, 6.6
