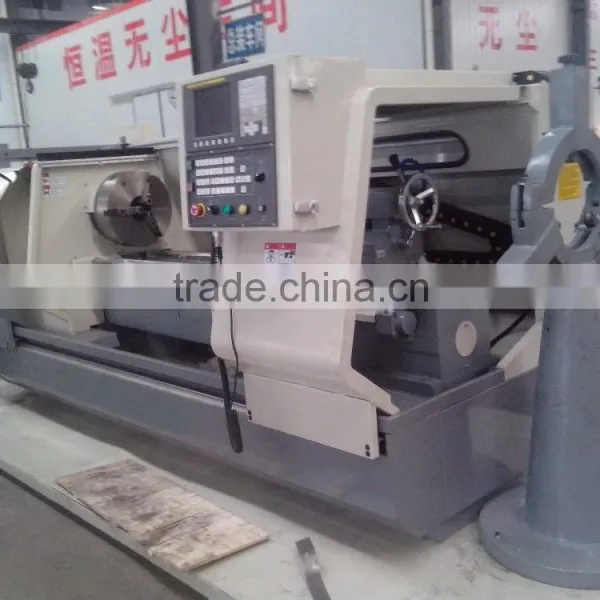

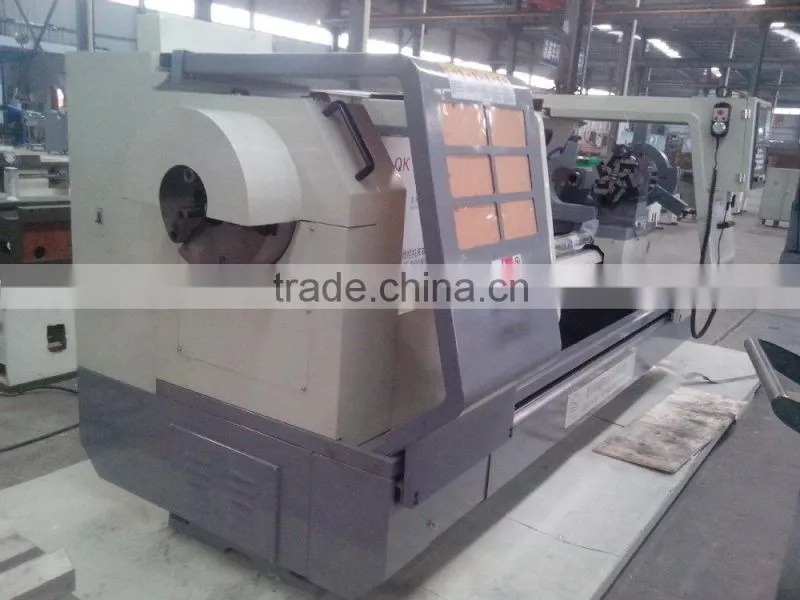

CNC Pipe Thread Lathe Spindle Bore 130mm With CE

Name: CNC Pipe Thread Lathe Spindle Bore 130mm With CE
Brand: DALIAN
SKU: 102720291
Availability: InStock

US$ 35,000 - 90,400 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 520mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number QK1313ax1000 QK1313ax1500

Voltage 7.5kW

Power(W) 3Ph 220V/380V/415V/440V/480V 50/60Hz

Certification CE Certificate; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

CNC Pipe Thread Lathe

For detailed information, to: export(at)

Specifications	Unit	Parameter
Max. swing over bed	mm	520
Width of the bed	mm	420
Spindle bore diameter	mm	132
Tube outside diameter	mm	30~126
Center distance	mm	1000/1500
Max. swing over crossslide	mm	280
Spindle taper		140/1: 20 (C11 )
Range of spindle speed	r/min	20~800
Power of main motor	KW	7.5
Chuck OD/ ID	mm	400/130
Three-jaw chuck	mm	K11-400D
Distance between two chucks	mm	1450
Inch thread range and number of species(thread per inch)		0.1~254
Metric thread range and number of species	mm	0.1~300
X axis/Z axis max. travel	mm	320/1500
X axis/Z axis travel speed	m/min	3~5/ 4~6
X axis/Z axis min. travel unit	mm	0.001
X axis/Z axis repeatability accuracy	mm	0.016/0.020
Tailstock sleeve diameter	mm	75
Tailstock sleeve taper		MS 5#
Sleeve travel	mm	170
Arbor cross-section size	mm	25×25
4-station Electric tool post		SLD10204W square turret: 190×190mm
Overall dimensions(L×W×H)	mm	3400×1600×1900
Grosswet weight	t	3.4/3.2
