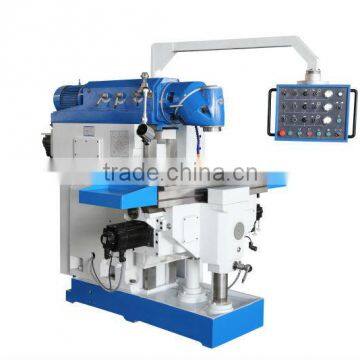

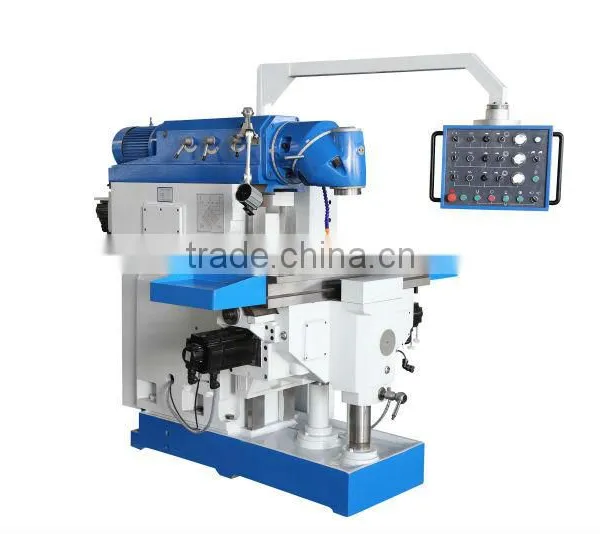

Ram Milling Machine

Ram Milling Machine thumbnail-1
Ram Milling Machine photo-1
US$ 5,074 - 33,971 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Liaoning, China
Brand Name:
LFM
Contact Supplier Request Quote Chat Now
Long Life Machinery Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Liaoning, China
Brand Name LFM
Model Number XL6432 (UWF3) X5646(UWF10) X5750(UWF12B) X5750A(UWF15B)
Type Universal
CNC or Not Normal
Voltage 220V/380V/415V/440V/480V
Power(W) 3~7.5kW
Certification ISO9001:2008; GB/T19001:2008
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Manual Milling Machine Technical Data

Specifications

Unit

X5646(UWF10)

X5750(UWF12B)

X5750A(UWF15B)

Table size

mm

460×1235

500×1600

500×2000

T-slots(NO.×width×pitch)

mm

5×18×80

5×18×80

5×18×80

Table travel (X×Y×Z)

mm

900×650×450

1200×700×500

1500×700×500

Swivel angle of milling head

-

360°

360°

360°

Spindle taper

-

ISO40

ISO50

ISO50

Spindle speed range

r.p.m

(27) 30~2050

(27) 30~2050

(27) 30~2050

Table feed(X/Y/Z)

mm/min

10~1000/10~1000/6~640

10~1000/10~1000/5~500

10~1000/10~1000/5~500

Table rapid speed

mm/min

2200/2200/1100

2200/2200/1100

2200/2200/1100

Distance between spindle nose and table surface

mm

32~482

25~525

25~525

Distance from spindle center line to column

mm

47~697

55~755

55~755

Main motor power

kW

5.5

7.5

7.5

Feed motor

kW

AC servo motor       X/Y:15NM; Z: 18NM

AC servo motor       X/Y:15NM; Z: 18NM

AC servo motor       X/Y:15NM; Z: 18NM

Max load

kg

800

1800

1800

Overall size

mm

1835×2362×2090

2475×2260×2180

2986×2260×2180

weight

kg

4000

5000

5500
