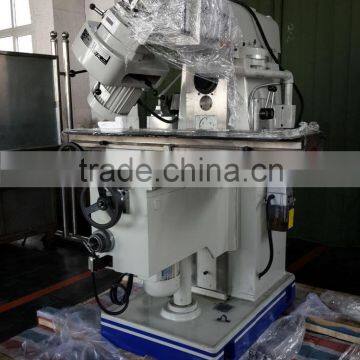

X6330h universal vertical and horizontal milling machine
- 100 Set / Sets per Month
- Qingdao Port China
- T/T Credit Card PayPal
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial CNC Milling Machine, production, Machine Center for steel, stainless
Product Details
Condition: | New | Place of Origin: | Liaoning, China | Brand Name: | LFM |
Model Number: | X6330h universal vertical and horizontal milling machine | Type: | Universal | CNC or Not: | Normal |
Voltage: | 220V/380V/415V/440V/480V | Power(W): | 5HP | Dimension(L*W*H): | 1800x1600x2200mm |
Weight: | 1680kgs | Certification: | CE; ISO9001:2008; GB/T19001:2008 | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
x6330h universal vertical and horizontal milling machine
1. x6330h cnc universal vertical and horizontal milling machine has following features:
2. Super width of bed and keen box guide way, which have been hardened and precision ground,
3. with high rigidity and stability;
4. The guide way of the saddle is lined with TF wearable belt.
5. The machine with one vertical and horizontal spindle, the spindles and gears been hardened and ground, accuracy stable good, suitable heavy cutting.
6. Taiwan head & 3 axes Taiwan leadscrew.
Specifications | Unit | Parameter |
Table size | mm | 300×1300 300×1500 |
Table longitudinal travel (manual) | mm | 845/1000 |
Table cross travel(manual) | mm | 385 |
Knee vertical travel(manual) | mm | 435 |
Knee rapid speed | mm/min | 900 |
Vertical: |
|
|
Spindle motor | HP | 5 |
Spindle speed | rpm | Standard : 16 steps 50Hz: 65~4500 60Hz:80~5440 Optional: variable seed 65~3750 |
Spindle taper |
| Standard:R8 Optional: ISO40 |
Quill travel | mm | 127 |
Quill feed | mm/rev | 0.04/0.08/0.15 |
Head rotating |
| Left and right 90° |
Distance from spindle to table surface | mm | 115~545 |
Horizontal: |
|
|
Motor power | HP | 5 |
Spindle speed | rpm | 50Hz:45/80/165/260/500/980 60Hz:55/100/200/315/600/1180 |
Spindle taper | 5HP | ISO40 |
Distance from spindle to center to table surface | mm | -20~410 |
Distance from spindle center to arm | mm | 183 |
Arm travel | mm | 480 |
Arm rotating |
| 360° |
Net weight | kg | 1680/1950 |
L×W×H | cm | 180×160×220 180×180×220 |
1. Drawbar
2. Working lamp
3. Electrical box
4. Handle oil pump
5. Tool and tool box
6. Cooling device
7. Workbench shield
8. Oil drip pan
