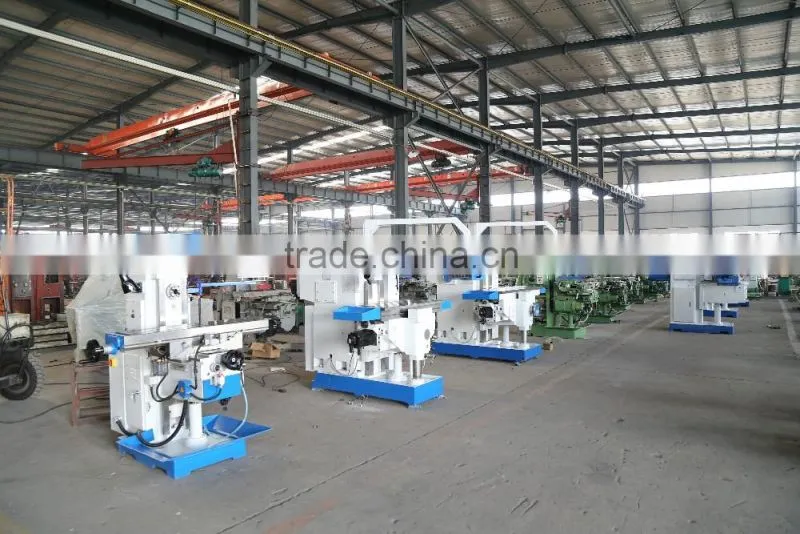

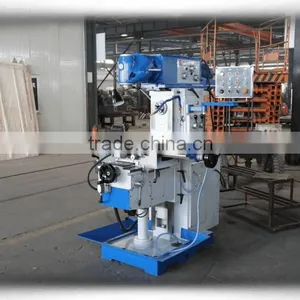

X5646 CE Ram Milling Machine Made in China

US$ 18,885 - 19,885 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Liaoning, China

Brand Name:

LFM

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Liaoning, China

Brand Name LFM

Model Number X5025 X5028 X5032 X5040

Type Universal

CNC or Not Normal

Voltage 220V/380V/415V/440V/480V

Power(W) 5.5kW

Dimension(L*W*H) 1835x2362x2090mm

Weight 4000kgs

Certification CE; ISO9001:2008; GB/T19001:2008

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

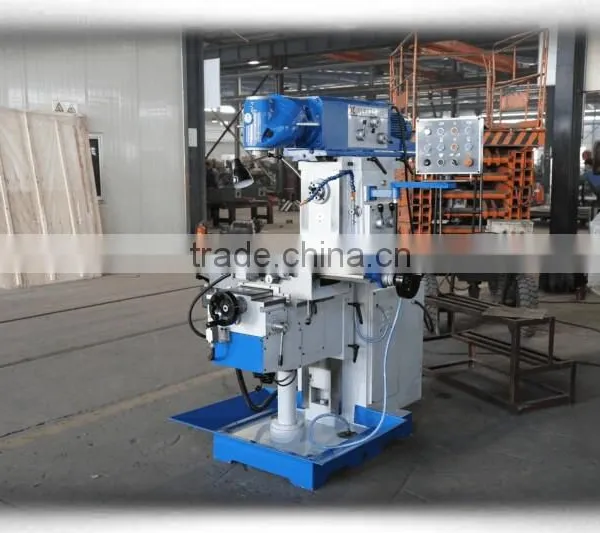

X5646 CE ram milling machine technical data

Main Features

X5646 ram milling machine has following features:

1. high strength HT-200 and high rigidity cast iron of bed;

2. guideways quenched and fine grinded;

3. x, y, z axis automatic feeding driven by servo motors;

4. ballscrew can be ordered specially;

5. CE Standard and CE Certificate;

6. DRO is available, too.

7. X5646 is equal to UWF10 Europen Model;

Main Technical Data

SPECIFICATIONS	UNIT	X5646 ram milling machine (UWF10)
Table size	mm	460×1235
T-slots(NO.×width×pitch)	mm	5×18×80
Table travel (X×Y×Z)	mm	900×650×450
Swivel angle of milling head	-	360°
Spindle taper	-	ISO40
Spindle speed range	r.p.m	(27) 30~2050
Table feed(X/Y/Z)	mm/min	10~1000/10~1000/6~640
Table rapid speed		2200/2200/1100
Distance between spindle nose and table surface	mm	32~482
Distance from spindle center line to column	mm	47~697
Main motor power	kW	5.5
Feed motor	kW	AC servo motor X/Y:15NM; Z: 18NM
Max load	kg	800
Overall size	mm	1835×2362×2090
weight	kg	4000
