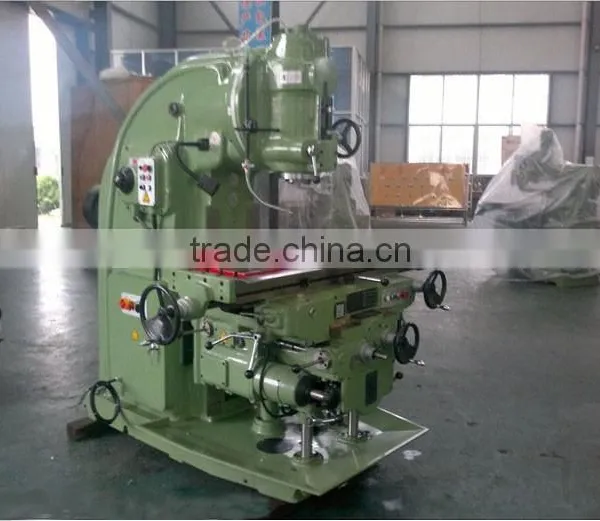

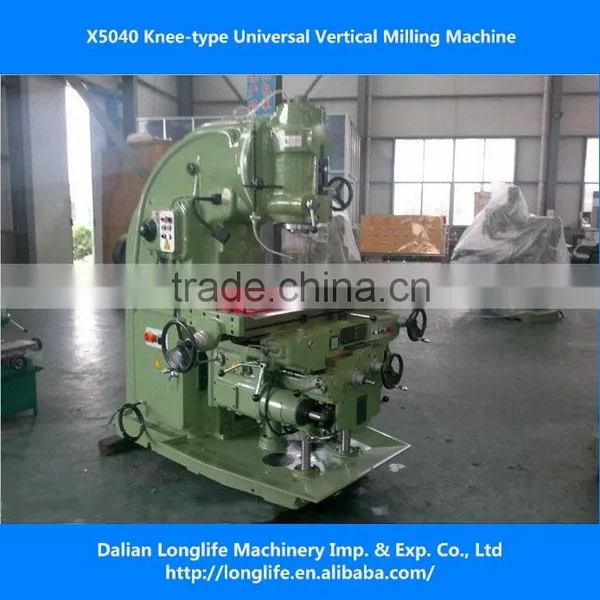

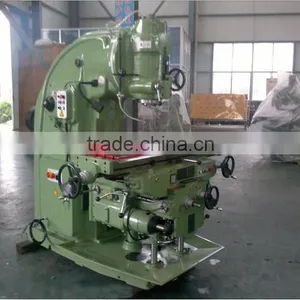

X5040 CE Universal Vertical Milling Machine

US$ 15,174 - 33,971 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Liaoning, China

Brand Name:

LFM

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Liaoning, China

Brand Name LFM

Model Number X5040(1700x4000mm) vertical milling machine

Type Universal

CNC or Not Normal

Voltage 220V/380V/415V/440V/480V

Power(W) 11kW

Dimension(L*W*H) 2100x2400x2300mm

Weight 4250kgs

Certification CE; ISO9001:2008; GB/T19001:2008

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

X5040 vertical milling machine Technical Data

Product Introduction

vertical milling machine has following features:

1. one more powerful metal cutting machine,

2. high rigidity,

3. wide range of spindle feed also can bear a heavy burden.

4. the spindle taper hole can install many kinds of cylindrical cutter, disc cutter, form cutter, end milling cutter and so on,

5. optional accessories as dividing head, rotary table, machine vice,milling chuck, Digital readout, can make such machine more functional.

Main Usage:

6. Suitable for machining all parts plane, inclined plane, groove, hole,keyway, etc,

7. for machinery manufacturing, mould, apparatus, instrument, car and motor car.

Main Technical Data

SPECIFICATIONS	UNIT	X5040 vertical milling machine
Tablesize	mm	1700×400
No.of T-slots		3
Width of T-slots	mm	18
Max load	kg	800
Longitudinal travel(manual/auto)	mm	900/880
Cross travel(manual/auto)	mm	315/300
Vertical travel(manual/auto)	mm	385/36
Rapid feed speed	mm/min	X:2300,Y:1540,Z:770
Spindle range speed	r/min	30~1500
Spindle speed step	steps	18
Spindle travel	mm	85
Max. swivel angle ofspindle		±45°
Distance betweens spindle nose andtable surface	mm	30/500
Power of spindle motor	kW	11
Overalldimensions(L×W×H)	mm	2300×2000×1650
Packing dimensions(L×W×H)	mm	2100×2400×2300
Net weight	kg	4250
