Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > CNC Milling and Drilling Machine at Low Price High Quality With CE

CNC Milling and Drilling Machine at Low Price High Quality With CE

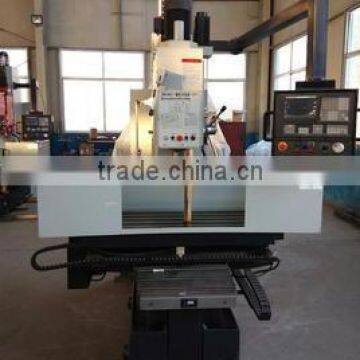

CNC Milling and Drilling Machine at Low Price High Quality With CE photo-1

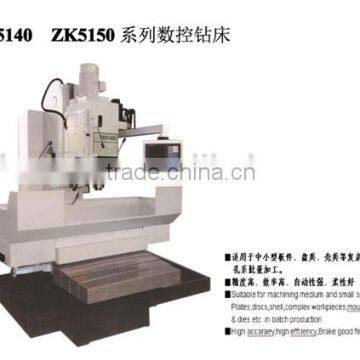

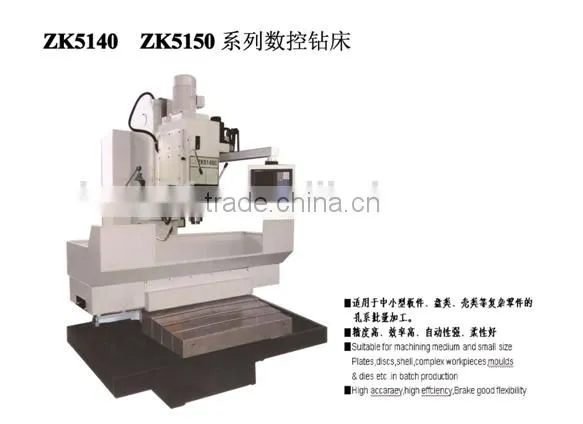

CNC Milling and Drilling Machine at Low Price High Quality With CE photo-2

US$ 21,074 - 33,971 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Liaoning, China

Brand Name:

LFM

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Liaoning, China

Brand Name LFM

Model Number ZK5140/50

Type Universal

CNC or Not CNC

Voltage 220V/380V/415V/440V/480V

Certification CE; ISO9001:2008; GB/T19001:2008

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

ZK Series Drilling and Milling Machine Technical Data

CNC Drilling Machine

1.Suitable for batch drilling on small and medium size plate, disc or shell type and other complex workpieces.

2.High accuracy, high efficiency, high automation and high flexibility.

Main feature of CNC Drilling Machine

1. ZK5140B and ZK5140B-1 vertical CNC drilling machine are universal drilling machine.the max drilling diameter is 40mm.

2.ZK5150B and ZK5150B-1 vertical CNC drilling machine are universal drilling machine.the max drilling diameter is 50mm.
3. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.

4. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.

SPECIFICATIONS	UNIT	ZK5140	ZK5150
Table size	mm	545 x 1000	545 x 1000
Area of worktable	mm	400 x 850	400 x 850
Max. drilling dia	mm	φ40	φ50
T- slot width x quantity	mm	18 x 3	18 x 3
Spindle hole taper		Morse 4	Morse 5
Spindle speeds	r/min	45 ~2000/12	45 ~2000/12
Power of spindle motor	kW	3	3
Travel of headstock(manual)	mm	360	360
Travel (X/Y/Z)	mm	850/400/240	850 /400 /240
Distance from spindle nose to worktable	mm	100~700	65~665
Distance from spindle center line to column	mm	335	335
Rapid travel rate X/Y/Z	m/min	15/15/4	15/15/4
CNC system	mm	GSK	GSK
Max. torque of spindle	N.m	200	200
Max. feed resistance	N	10000	12000
Positioning accuracy	mm	±0.025	±0.025
Repeatability accuracy	mm	±0.015	±0.015

Standard Accessories

ITEM	Specifications	Quantity
Drilling machine	Z5140B / Z5150B	1set
Three-jaw drill chuck	B16	1 pieces
Drill chuck joint-bar	MT5-B16	1 piece
MT sleeve	5 x 2	1 piece
MT sleeve	5 x 3	1 piece
MT sleeve	5 x 4	1 piece
Operation manual		1 piece
Test list		1 piece
Packing list		1 piece
