Home > Products > Milling Machine > X2014x3000 economic gantry milling machine made in china

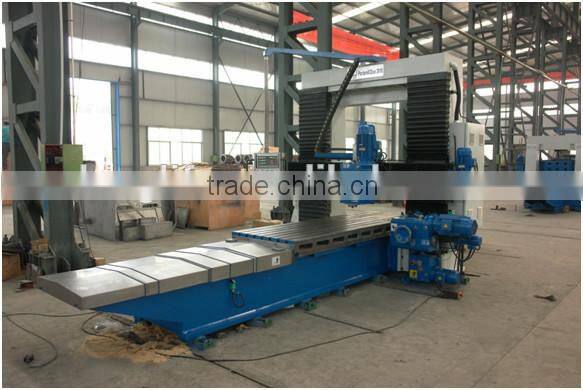

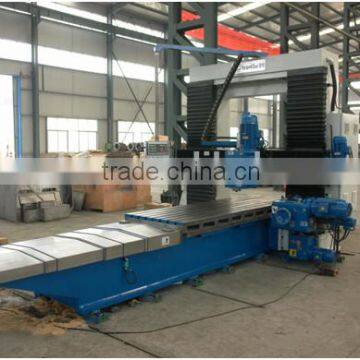

X2014x3000 economic gantry milling machine made in china
- 100 Set / Sets per Month
- Dalian/Tianjing/Shanghai/Qingdao China
- T/T Credit Card PayPal
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial CNC Milling Machine, production, Machine Center for steel, stainless
Product Details
Condition: | New | Place of Origin: | Liaoning, China | Brand Name: | LFM |
Model Number: | X2014x3000 gantry milling machine | Type: | Other, Gantry | CNC or Not: | Normal |
Voltage: | Customer Requirement | Power(W): | 7.5kW | Dimension(L*W*H): | 7000x3850x3500mm |
Weight: | 18000kgs | Certification: | CE; ISO9001:2008; GB/T19001:2008 | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

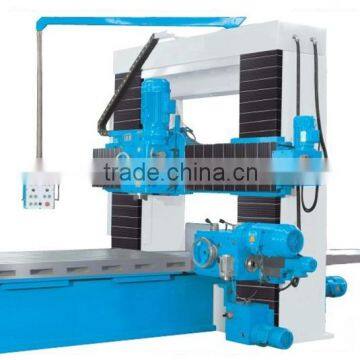

X2014x3000 gantry milling machine
Such gantry milling machine has following features:
1. Gantry Milling Machine
2. ISO9001/CE certification
3. Swivel angle of milling head +-35 degree
4. Spindle motor power 7.5kw
Specifications | Unit | Parameter |
X-travel | mm | 3000 |
Y-travel | mm | 1800 |
Z-travel | mm | 1200 |
Vertical travel of side head | mm | 500 |
Displacement distance of side head |
| 350 |
Worktable size | mm | 3000x1400 |
Max. weight of workpiece | kg | 4000 |
T-slots(numbers x width x distance) | mm | 7x28x210 |
Distance from vertical head nose to table surface | mm | 0~1200 |
Distance from centerline of side head to table surface | mm | 0~500 |
Vertical spindle speed | min-1 | 82~505 |
Max. output torque of vertical spindle | Nm | 790 |
Taper of vertical spindle |
| ISO50 7:24 50 |
Taper of side head spindle |
| ISO50 7:24 50 |
Speed of side head | min-1 | 82-505 |
Max. output torque of side head | NM | 790 |
X-axis fast speed | mm/min | 1300 |
Y-axis fast speed | mm/min | 890 |
Z-axis fast speed | mm/min | 432 |
Vertical fast speed of side head |
| 730 |
X-feed speed | mm/min | stepless (0~2620) |
Y-feed speed | mm/min | 65, 320, 890 |
Z--feed speed | mm/min | fast speed 432 |
Vertical feed speed of side head |
| 50, 265, 730 |
Main motor power | kW | 7.5 |
Motor power of side head | kW | 7.5 |
Motor power of X-axis | kW | 7.5 |
Motor power of Y-axis | kW | 1.1 |
Motor power of Z -axis | kW | 4 |
Feed motor power of side head |
| 0.4 |
Overall dimensions | mm | 7000x3850x3500 |
Weight | kg | 18000 |
