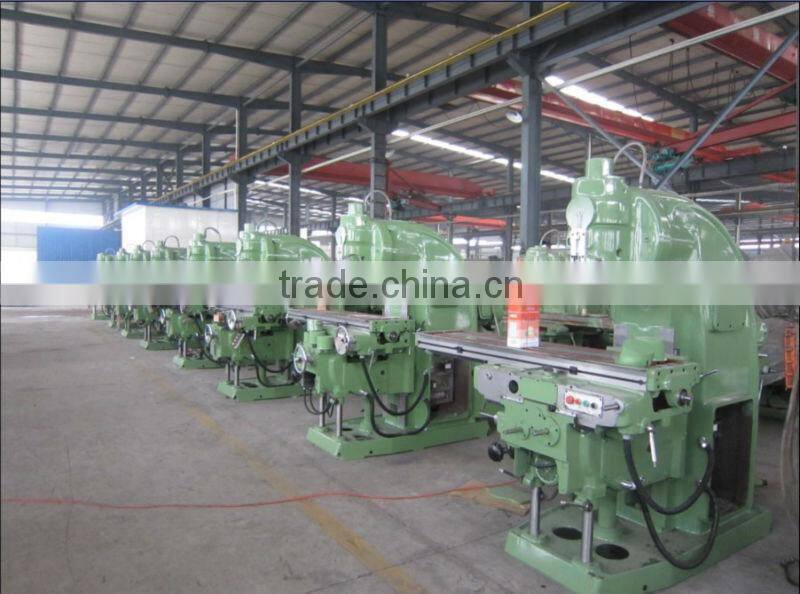

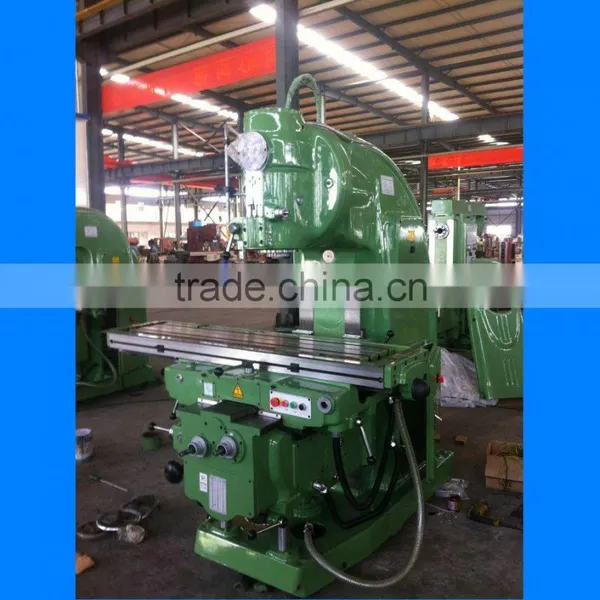

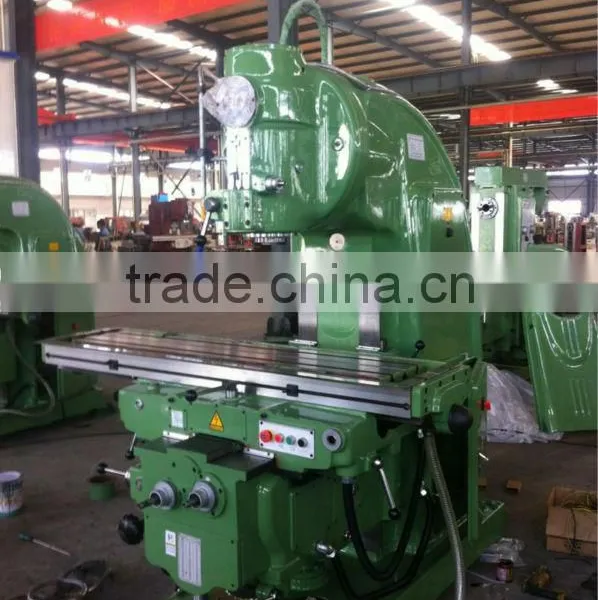

X50 Series Strong Universal Vertical Milling Machine

US$ 5,074 - 33,971 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Liaoning, China

Brand Name:

LFM

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Liaoning, China

Brand Name LFM

Model Number X5025 X5028 X5032 X5040

Type Universal

CNC or Not Normal

Voltage 220V/380V/415V/440V/480V

Power(W) 3~11kW

Dimension(L*W*H) depends

Weight depends

Certification CE; ISO9001:2008; GB/T19001:2008

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

X50 series vertical milling machine Technical Data

Product Introduction

vertical milling machine has following features:

1. one more powerful metal cutting machine,

2. high rigidity,

3. wide range of spindle feed also can bear a heavy burden.

4. the spindle taper hole can install many kinds of cylindrical cutter, disc cutter, form cutter, end milling cutter and so on,

5. optional accessories as dividing head, rotary table, machine vice,milling chuck, Digital readout, can make such machine more functional.

Main Usage:

6. Suitable for machining all parts plane, inclined plane, groove, hole,keyway, etc,

7. for machinery manufacturing, mould, apparatus, instrument, car and motor car.

Main Technical Data

Specifications	Unit	X5025	X5028	X5032/B	XL5032/C/CL	X5040
Table size	mm	250×1250	280×1200	320×1325 320×1600	320×1325 320 x 1600	400 x 1700
Table Travel (X/Y/Z)	mm	680/280/400	620/280/400	700/680 255/240 370/350	750/320/460 1100/320/450 1300/320/450	1400/400/515
Table feed (X/Y/Z)	mm/min	20~800/20~800/10~400	20~800/20~800 /10~400	23.5~1180/23.5~1180/8~394	30~1200/20~800/15~600	30~1200/20~800/15~600
Spindle travel	mm	70	70	70	70	85
Spindle bore	mm	29	29	29	29	29
Spindle taper		7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50
Rapid speed of table(X /Y/Z)	mm/min	1000/1000/500	1000/1000/500	2300/1540/770	2300/1540/770	2300/1540/770
T-slots (No./width/pitch)	mm	3/14/63	5/14/50	3/18/70	3/18/70	3/18/70
Distance between spindle nose and table	mm	35~435	35~435	60~410	50~510	30~500
Distance between spindle and column	mm	285	285	350	300	385
Swivel angle of vertical milling head		±30°	±30°	±45°	±30°	±45°
Spindle speed range		12Steps	12Steps	18Steps	12Steps	18Steps
Spindle speed	rpm	35~1500	35~1500	30~1500	50~1475	30~1500
Main motor power	kW	3	3	7.5	5.5	11
Rapid motor power	kW	1.5	1.5	1.5	1.5	1.5
Overall size	cm	168 x 168x 181	163 x168 x 181	229 x 177 x190	180x 210 x 215	255x 215 x 229
N.W/G.W	kg	1450	1500	2900/3200	2750	4250
