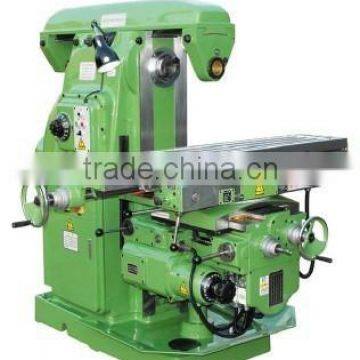

X6132 Series cheap horizontal milling machine with CE
- 100 Set / Sets per Month
- Dalian/Qingdao China
- T/T Credit Card PayPal
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial CNC Milling Machine, production, Machine Center for steel, stainless
Product Details
Condition: | New | Place of Origin: | Liaoning, China | Brand Name: | LFM |
Model Number: | X6132 horizontal milling machine | Type: | Horizontal | CNC or Not: | Normal |
Voltage: | 220V/380V/415V/440V/480V | Power(W): | 7.5kW | Dimension(L*W*H): | depends |
Weight: | depends | Certification: | CE; ISO9001:2008; GB/T19001:2008 | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
X6132 Series horizontal milling machine Technical Data
Such horizontal milling machine has following features:
1. The X6132 horizontal milling machine are widely used in the machining workshop, for miling plane, key ways and so on;
2. optional accessories as vertical milling head,dividing head, rotary table, machine vice, milling chuck, DRO, etc, makes such horizontal milling machine have more machining function.
3. suitable for machining all parts plane, inclined plane, groove, hole etc,
4. CE Standard and CE Certificate;
SPECIFICATIONS | UNIT | X6132 | X6132H | X6132B | X6132BH |
Table size(width×length) | mm | 320 x 1325 | 320 x 1325 | 320 x 1600 | 320x1600 |
Longitudinal travel(manual/automatic) | mm | 700/680 | 700/680 | 900/880 | 900/880 |
Max transverse travel(manual/automatic) | mm | 255/240 | 255/240 | 255/240 | 255/240 |
Max vertical travel(manual/automatic) | mm | 320/300 | 410/390 | 410/390 | 410/390 |
Max rotary angle |
| ±45 | ±45° | ±45° | ±45° |
Distance between spindle axis table | mm | 30/350 | 30/350 | 30/350 | 30/350 |
Spindle speed range |
| 18 | 18 steps | 18 steps | 18 steps |
Spindle speed | mm/min | 30~1500 | 30~1500 | 30~1500 | 30~1500 |
Range of table travel |
| 18 steps | 18 steps | 18 steps | 18 steps |
Maim motor power | kW | 7.5 | 7.5 | 7.5 | 7.5 |
Feed motor power | kW | 1.5 | 1.5 | 1.5 | 1.5 |
Overall size (L×W×H) | mm | 2294X1770X1610 | 2294X1770X1790 | 2294X2050X1790 | 2294 x2050 x1790 |
N.W/G.W | kg | 2650/2950 | 2850/3150 | 2940/3240 | 2940/3240 |
