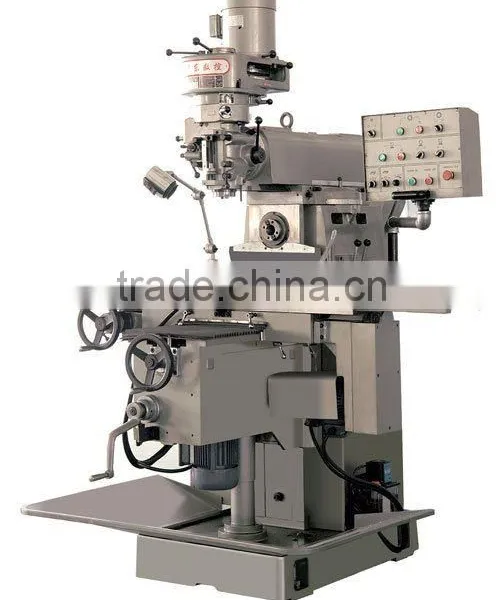

Turret Milling Machine
It combines the feature of horizontal and vertical milling machine and can be called as universal milling machine.
1,It adapt to be equipped with wafer milling tool, angle milling tool, face tool to mill all kinds of surface and grooves.
2,The index head(optional)on the table The machine can processing gear after installing indexing head.
3,Spindle can move in vertical direction automatically and manually used as drilling machine.
4,vertical head can be turned in front, rear, left and right direction. This machine can process inclined hole., inclined slot.
5,The machine has the function of horizontal milling machine. There will be a high efficency of using Face milling tool to processing and boring.
6,It is widely used for repairing, small amount production, mold making
7,The milling machine can be installed rapid moving device in vertical and horizontal direction.
8, It is equipped with adjusting mechanism in the easy broken part, which can eliminate error.
model |
unit |
XN6330H |
XN6330H |
XN6330H |
|||
Table size |
mm |
300*1300 |
300*1300 |
300*1500 |
300*1370 |
300*1500 |
|
Table longitudinl travel (manual) |
mm |
845 |
845 |
1000 |
880 |
1000 |
|
Table cross travel(manual) |
mm |
385 |
380 |
||||
Knee vertical travel(manual) |
mm |
435 |
|||||
Table longitudinal feed rote |
mm/min |
0~3500 Servo motor |
------------ |
||||
Table cross feed rate |
mm/min |
------------ |
|||||
Knee rapid speed |
mm/min |
900 |
|||||
Vertical spindle |
Spindle motor |
HP |
5HP |
standard:3HP optional: 5HP |
|||
Spindle speed |
rpm |
Standard : 16 steps 50Hz: 65~4500 60Hz:80~5440 optional: stepless speed 65~3750 |
|||||
Spindle taper |
|
ISO40 |
standard:R8 optional:ISO40 |
||||
Quill travel |
mm |
127 |
|||||
Quill feed |
mm/rev |
0.04/0.08/0.15 |
|||||
Head rotating |
|
Left 90° |
Left 90°,front and rear each 45° |
||||
Distance from spindle to table surface |
mm |
115~545 |
|||||
Horizontal spindle |
Motor power |
hp |
5HP |
||||
Spindle speed |
rpm |
50Hz:45/80/165/260/500/980 60Hz:55/100/200/315/600/1180 |
|||||
Spindle taper |
|
ISO40 |
|||||
Distance from spindle to center to table surface |
mm |
-20~410 |
|||||
Distance from spindle center to arm |
mm |
183 |
|||||
Arm travel |
mm |
480 |
|||||
Arm rotating |
|
360° |
|||||
Net weith |
kg |
1900 |
1950 |
1680 |
1730 |
||
L*W*H |
cm |
180*150*220 |
180*180*220 |
180*160*220 |
180*180*220 |
||
