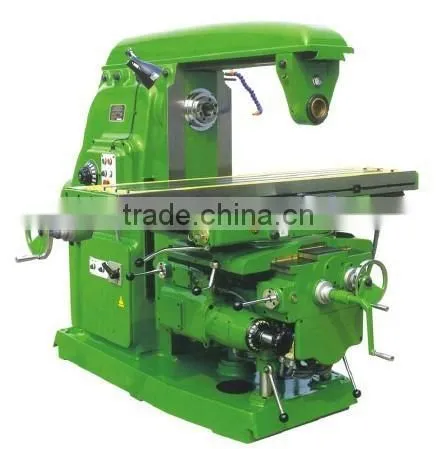

X6140 horizontal milling machine with CE
Such horizontal milling machine has following features:
1. widely used in the machining workshop, for miling plane, key ways and so on;
2. optional accessories as vertical milling head,dividing head, rotary table, machine vice, milling chuck, DRO, etc, makes such horizontal milling machine have more machining function.
3. suitable for machining all parts plane, inclined plane, groove, hole etc,
4. CE Standard and CE Certificate;
SPECIFICATIONS |
UNIT |
Parameter |
Table Size |
mm |
1700×400 |
No. of T-slots |
|
3 |
Width of T-slots |
mm |
18 |
Max load |
kg |
800 |
Longitudinal(manual/auto) |
mm |
900/800 |
Cross travel(manual/auto) |
mm |
315/300 |
Vertical travel(manual/auto) |
mm |
380/360 |
Cutting feed speed |
mm/min |
X:19~950Y:19~950Z:6.3~317 |
Rapid feed speed |
r/mm |
X:2300 Y:2300 Z:770 |
Spindle speed range |
(steps) |
30~1500 |
Spindle speed step |
mm |
18 |
Distance between spindle nose and table surface |
|
30~410 |
Power of spindle motor |
mm |
11 |
Overall dimensions(L×W×H) |
kW |
2556×2159×1770 |
Packing Size |
mm |
2100*2400*1800 |
Net weight |
mm |
3850 |
