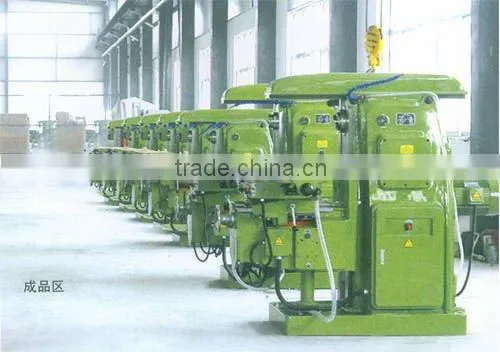

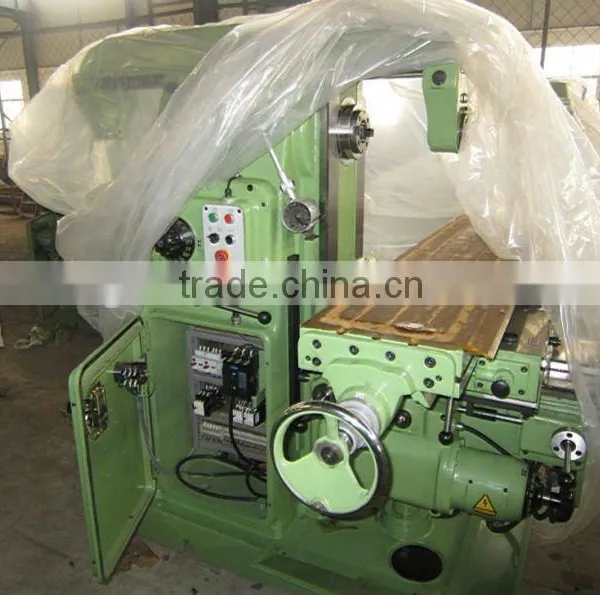

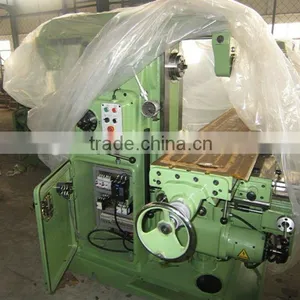

X6025 China Horizontal Universal Milling Machine

US$ 5,074 - 5,974 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Liaoning, China

Brand Name:

LFM

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Liaoning, China

Brand Name LFM

Model Number X6025 universal milling machine

Type Universal

CNC or Not Normal

Voltage 220V 380V 400V 415V 440V 480V

Power(W) 3kW

Dimension(L*W*H) 1685 x 1680 x 1810mm

Weight 1300kgs

Certification CE Certificate; ISO9001:2008; GB/T19001:2008

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

X6025 horizontal milling machine

Main Features

Such horizontal milling machine has following features:

Mechanical Drive, X/Y/Z can be automatic working feed, fast feed;

kinds of parts of the machine have obtained National Patent; Excellent stability, high accuracy(), mainly aims to India and South American Markets

Table can be rotary,

while table of X6025 cannot be rotary.

The machine is also equipped with vertical milling head.

CE Standard and CE Certificate;

Main Technical Data

SPECIFICATIONS	UNIT	Parameter
Table Size	mm	1250 x 250
Table Travel ( X, Y, Z)	mm	680/280/400
Spindle taper		7: 24 ISO40
Rapid speed of table (X, Y, Z)	mm/min	1000/1000/500
Table feed ( X, Y, Z)	mm/min	(8steps)20~800 (X, Y) (8steps)10~400(Z)
T-slots( NO: / width/ pitch)		3/14/63
Spindle speed range	r/min	(12steps) 35~1500
Distance between spindle nose and table surface	mm	75~475
Distance between spindle axis and RAM surface	mm	155
Max rotary angle		±45°
Main motor power	kW	3
3 to feed motor feed	kW	0.75
Overall size	mm	1685 x 1680 x 1810
Net weight	kg	1300
