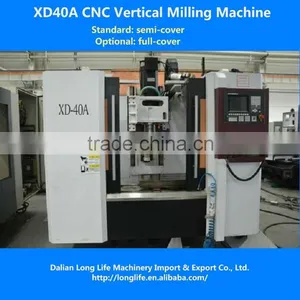

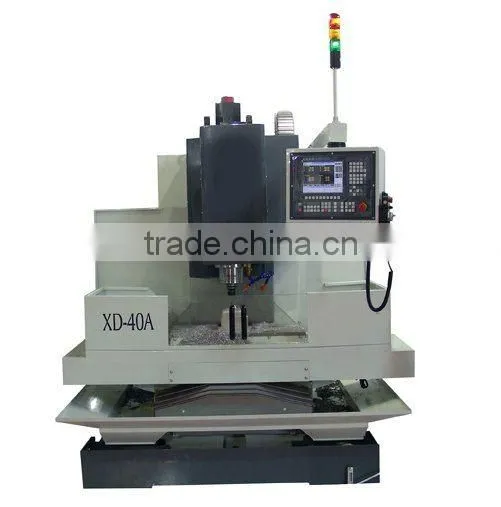

XD40 cnc vertical milling machine
1. Milling, boring, drilling, reaming and tapping can be performed in one set-up.
2. widely used in various industries of military, aviation, car manufacturing and molding.
Such cnc vertical milling machine has following features:
1. The basic parts, including in machine floor, column, spindle box, cross slide and work-table, are casted with high rigidity cast-iron, so that guarantees s stable structure and ever high quality.
2. High-speed, high-accuracy spindle;
3. X, Y, Z axes are all equipped with Sliding Guide and high-precision ballscrew which is pre-tensioned to enhance the rigidity to eliminate the deformation, which is caused by the high temperature as the spindle rotating at high speed.
4. The machine has characteristics of high-Automation, reliability, convenience, easy operation, suitability and handsome appearance together with heavy duty
5. CE Standard and CE Certificate;
Specifications |
Unit |
Parameter |
Table(L×W) |
mm |
800×420 |
T-slot(Numbers × Width × Distance) (b/t slots) |
mm |
3×18×125 |
Table load Max |
kg |
500 |
The distance from spindle center line to column guide way surface |
mm |
511 |
The distance from spindle nose end face to table upper surface |
mm |
150~670 |
X/Y/Z travel |
mm |
600/420/520 |
X/Y/Z guide way type |
|
Linear way |
X/Y/Z rapid traverse speed |
m/min |
24/24/20 |
Feed rate |
mm/min |
1~10000 |
X/Y/Z servo motor power |
Nm |
12/12/12 |
Spindle motor power |
kW |
7.5/11 |
Spindle speed range |
r/min |
60~8000 |
Spindle taper |
|
#40(7/24) |
X/Y/Z Positioning accuracy |
mm |
X/Z:0.02 Y:0.016 |
Air pressure requirement |
MPa |
0.6 |
Overall dimension(L×W×H) |
mm |
2310×2040×2337 |
Net weight |
kg |
4000 |
Spindle speed 8000rpm;BT40;
X / Y / Z-axis linear guide way, Simple protection,
automatic lubricating system,
automatic cooling system,
half/full-enclosed guard,
automatic chip conveyor,
manual oil gun and Manual Pulse Generator (MPG);
kinds of colors for your choice/can be customized
