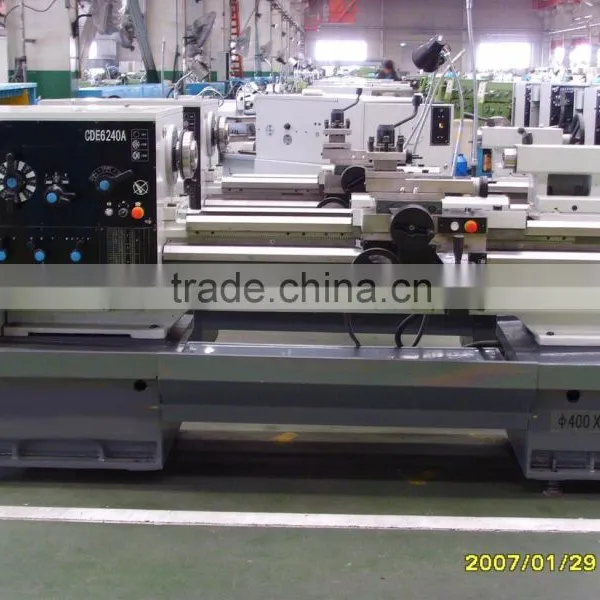

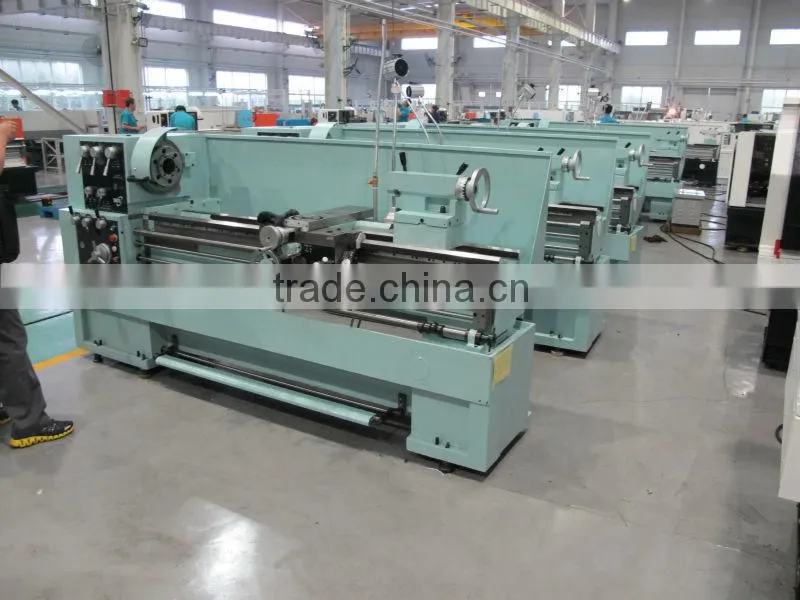

CDE6240 conventional horizontal lathe
Such conventional horizontal lathe has following features:
- Spindle nose: C6-type (No D-type spindle nose)
- Chucktype: Direct-coupled;
- New improved direct-coupled 3-jaw, 4-jaw chuck;
- Guide rail width: 394mm;
- Guide rail hardness: HRC50,Depth 1.5mm
- Max load capacity between two centers: 500kg;
- Provide left and right wheel,
- Apron with rapid shift handle in longitudinal and cross direction;
- Special indication is required iftailstock sleeve is with a scale;
- Mechanical clutch is used for such lathe. No foot brake, No electrical cabinet
Specifications |
Unit |
Parameter |
Max. swing over bed |
mm |
Φ400 |
Max. swing over carriage |
mm |
Φ220 |
Max. length of work piece |
mm |
750/1000/1500/2000/3000 |
Max. swing over gap |
mm |
Φ700 |
Width of guide way |
|
394 |
Dia. of spindle bore |
mm |
Φ52 |
Taper of center sleeve |
|
Morse No.6 |
Spindle speed |
rpm |
11~1400/22 |
Longitudinal feed |
mm/rev |
0.035~2.842 |
Cross feed |
mm/rev |
0.009~0.804 |
Metric thread |
|
0.5~240(66) |
Whitemouth thread |
|
80~1/4(49)tpi |
Module thread |
mm |
0.25~120(57) |
Diametrical pitch thread |
mm |
160~7~16DP(50) |
Section of tool shank |
mm |
25×25 |
Travel of top slide |
mm |
150 |
Max. travel of cross slide |
mm |
348 |
Pitch of longitudinal lead screw |
mm |
12 |
Travel of tailstock center sleeve |
mm |
150 |
Diameter of tailstock center sleeve |
mm |
Φ75 |
Taper of tailstock center sleeve |
Morse |
No.5 |
Main motor power |
kW |
7.5(50Hz)/5.5 (60Hz) |
Wooden case |
mm |
270x115x190 295x115x190 345x115x190 395x115x190 495x115x190 |
Gross/net weight |
kg |
2670/1970 2715/2020 2805/2070 2895/2180 3095/2380 |
