Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CDS6276B/Cx2000 CE Universal Horizontal Lathe Price

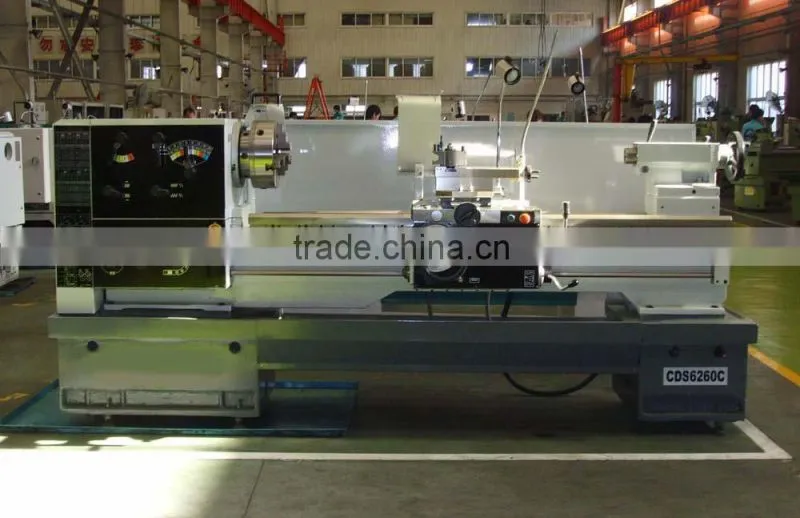

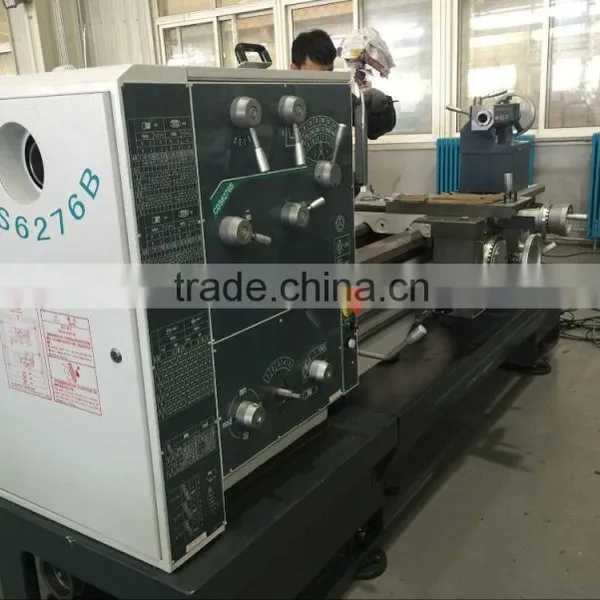

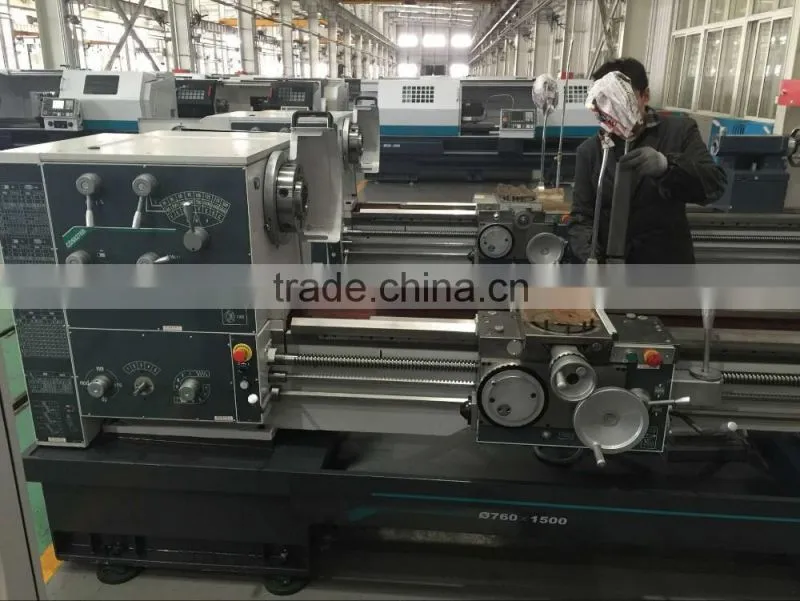

CDS6276B/Cx2000 CE Universal Horizontal Lathe Price

Name: CDS6276B/Cx2000 CE Universal Horizontal Lathe Price
Brand: DALIAN
SKU: 102719183
Availability: InStock

CDS6276B/Cx2000 CE Universal Horizontal Lathe Price thumbnail-1

CDS6276B/Cx2000 CE Universal Horizontal Lathe Price photo-1

US$ 10,516 - 10,716 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 760mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number CDS6240B/C CDS6250B/C CDS6256B/C CDS6266B/C CDS6276B/C

Voltage 220V,380V,415V,440V,480V;

Power(W) 7.5/11kW;

Dimension(L*W*H) 3780x1120x1800mm

Weight 2600kgs

Certification CE; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

Main Features

Such horizontal metal gap lathe machine has following features:

l With CE Certificate, with GAP;

l Standard spindle head: D8; spindle hole diameter:82mm;

l 3-jaw chuck and 4-jaw chuck: Direct coupled type

l Guide rail width: 394mm

l Guide rail hardness: HRC50, Depth1.5mm

High-frequency quenching (hardness HRC50)

l Maximum load capacity between two centers: 500kg

l Standard: the lathe is equipped with left-handed wheel;

right-handed wheel shall be informed specially when placing order;

l Apron iswith longitudinal orcross rapid shift handle;

l Special indication is required iftailstock sleeve is with a scale;

l With mechanical clutch and mechanical braking;

l kinds of colors for your choice/can be customized;

Main Technical Data

Specifications	Unit	Parameter
Max. swing over bed	mm	760
Max. swing over carriage	mm	540
Max. swing over gap	mm	965
Width of gap	mm	250
Max. length of work piece	mm	2000
Width of guide way	mm	394
Spindle nose		D8
Spindle speed	rpm	26~2000
Dia. of spindle bore	mm	82
Taper of spindle bore		90/1:20
Longitudinal feed	mm/rev	0.044~1.48
Cross feed	mm/rev	0.022~0.74
Metric thread	mm	0.35~80 (53 or 77)
Inch thread	tpi	7/16~80 (47)
Module thread	mm	0.2~40 (45 or 66)
Diametrical pitch thread	DP	7/8~160 (42)
Max. travel of cross slide	mm	348
Travel of top slide	mm	150
Travel of tailstock quill	mm	150
Diameter of tailstock quill	mm	75
Taper bore of tailstock quill		M5
Main motor power		10HP(7.5kW)/15HP(11kW.OPTIONAL)
Wooden box	mm	3850×1150×1900
Pallet packing	mm	3780×1120×1800
Packing & Weight	kgs	N.M. 2600 G.W. 3800

Free Std Accessories

Name	Size(mm)
3-jaw chuck	Φ315 (For CDS6276B)
Steady rest	Φ30~200(For CDS6276B)
Follow rest	Φ20~100(For CDS6276B)
Catch plate	Yes
Dead center	D115, DB1221
Center sleeve	Yes
Foot brake	Yes
