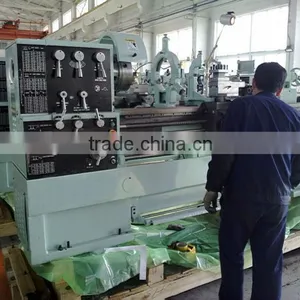

CDL Series Bench Lathe for Small Workshops

Name: CDL Series Bench Lathe for Small Workshops
Brand: DALIAN
SKU: 102718923
Availability: InStock

US$ 4,050 - 7,720 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 510mm

Place of Origin Liaoning, China

Brand Name DALIAN

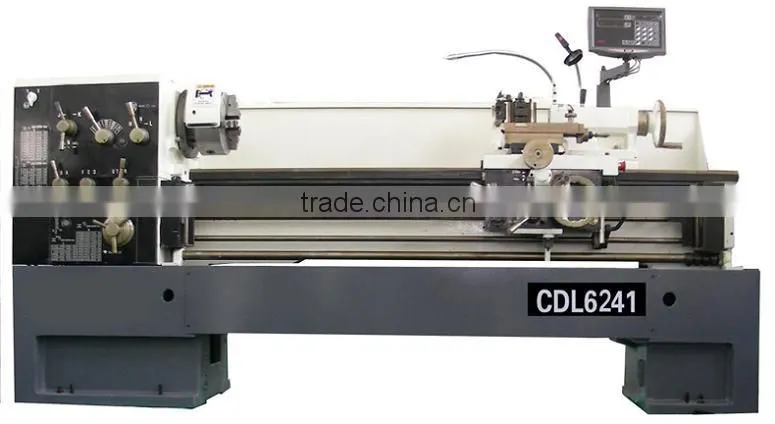

Model Number CDL6236 CDL6241 CDL6246 CDL6251

After-sales Service Provided Engineers available to service machinery overseas

Manual Lathe Parameter

Main features:

l Standard: spindle head is C6, Spindle hole: Φ48 mm

l Spindle head is D6, spindle hole: Φ52 mm;

l Guide rail width:300mm;

l Guide rail hardness:HRC50, Depth1.5mm;

l Hardened and ground guide ways;

l Maximum load capacity between two centers: 300kg

l Standard: the lathe is equipped with left-handed wheel;

l Right-handed wheel shall be informed specially when placing order;

l Three boxes are all self inside lubricating;

l Machine tool bed box are non-clutch;

l CE Certificated are not provided;

Item		CDL6236	CDL6241	CDL6246	CDL6251
specification
Max swing over bed		360mm	410mm	460mm	510mm
Max swing over carriage		180mm	230mm	270mm	320mm
Center distance		750mm 1000mm 1500mm
Max swing in gap		590mm	640mm	675mm	735mm
Width of bed		300mm
Head stock
Spindle nose		C6/D6	D6	D8
Spindle bore		48mm	52mm	82mm
Taper of spindle bore		M6		1:20(F 90)
Spindle speeds		32-2000rpm (12 speed)		16-1600rpm (12 speed)
Thread
Range of inch threads		2-56TPI
Range of metric threads		0.5-14mm
Range of module threads		0.5-14mm
Range of Di metrical pitch thread		2-56 D.P
Longitudinal feed		0.06-0.82mm/rev(0.002"-0.032"/r)
Cross feed		0.017-0.242mm/rev(0.007"-0.0095"/r)
Lead screw diameter		36mm
Pitch of lead screw		6mm
Tailstock
Taper of tailstock quill		M4
Travel of tailstock quill		150mm
Diameter of tailstock quill		60mm
Motor
Power of main motor		3/4.5kW(4/6HP)		5.5kW
Power of coolant motor		90W(0.125HP)		90W
Net weight		1228kg 1353kg 1593kg		1630 2010 2220kg	1660 2040 2250kg
Gross weight		1378kg 1553kg 1893kg		1780 2555 2720kg	1810 2585 2750kg
Packing dimensions (L×W×H)	C.D.	WOODEN CASES		STEEL PALLET
	75mm	2230×1090×2000mm		2070×1100×1780mm
	1000mm	2480×1090×2000mm		2300×1100×1780mm
	1500mm	2980×1090×2000mm		28570×1100×1780mm
