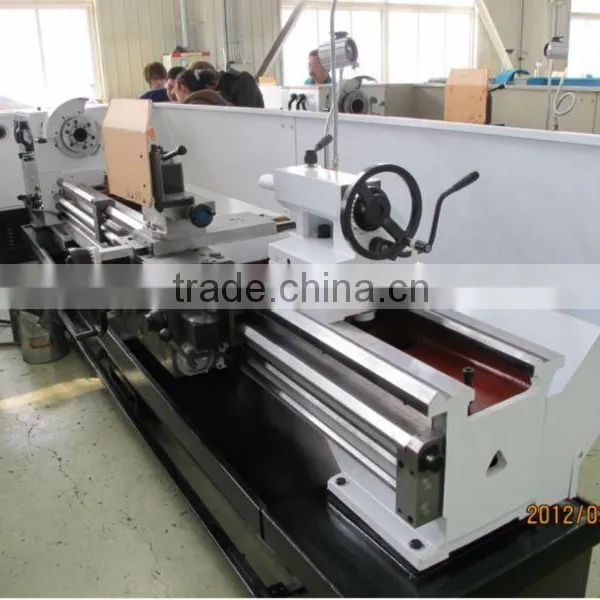

CE Certified Conventional Lathe

Name: CE Certified Conventional Lathe
Brand: DALIAN
SKU: 102718927
Availability: InStock

US$ 9,055 - 15,230 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 760mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number CDS6240/50/56/66/76B/C

Certification CE; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

Lathe Data Sheet

CE certificate of TUV Rheinland,Germany & CQC,China

It can machine inner circle, outer circle, and end and head surface, taper surface. Gap lathe can process the deformation parts. Function is including the drilling and reaming;
Thread: Metric, inch, diametrical pitch, module thread;
The bed is made of high-grade cast iron;

Item		CDS6240/50/56/66/76B		CDS6240/50/56/66/76C
Max. swing over bed		400/500/560/660/760mm
Max. swing over carriage		230/290/350/440/540mm
Max. swing over gap		700/760/780/870/965mm
Width of gap		250mm
Max. length of work piece		1000/1500/2000/3000mm
Width of guide way		394mm
Spindle nose		D8
Spindle speed		26~2000rpm (16 steps)	23~1800rpm CDS6276B only	26~1700rpm (16steps)	23~1530rpm CDS6276C only
Dia. of spindle bore		82mm		105mm
Taper of spindle bore		90/1:20		110/1:20
Longitudinal feed		0.044-1.48mm/rev
Cross feed		0.022-0.74mm/rev
Metric thread		0.35-80mm(53 or 77)
Inch thread		7/16-80tpi(47)
Module thread		0.2-40mm(45 or 66)
Diametrical pitch thread		7/8-160 DP (42)
Max. travel of cross slide		348/348/348/355/355mm
Travel of top slide		150mm
Travel of tailstock quill		150mm
Diameter of tailstock quill		75mm
Taper bore of tailstock quill		M5
Main motor power		10HP(7.5kW)/15HP(11kW.OPTIONAL)
Packing & Weight	1000mm	Wooden case(mm):2850×1150×1900 Metal pallet(mm):2780×1120×1800
		N.M.(kgs):2100/2150/2200G.W.(kgs):2670/2810/2860
	1500mm	Wooden case(mm):3350×1150×1900 Metal pallet(mm):3280×1120×1800
		N.M.(kgs):2150/2200/2250 G.W.(kgs):2950/3000/3050
	2000mm	Wooden case(mm):3850×1150×1900 Metal pallet(mm):3780×1120×1800
		N.M.(kgs):2260/2310/2360/2600 G.W.(kgs):3170/3220/3270/3800
	3000mm	Wooden case(mm):4850×1150×1900 Metal pallet(mm):4780×1120×1800
		N.M.(kgs):3030/3080/3150/2800 G.W.(kgs):4010/4060/4110/4250
