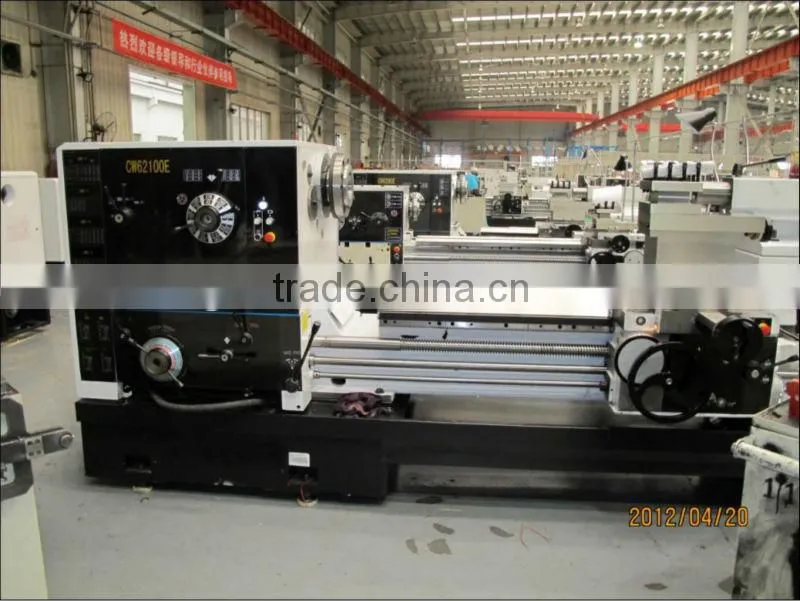

CW62100Ex750 Universal Horizontal GAP Lathe

CW62100Ex750 Universal Horizontal GAP Lathe thumbnail-1
CW62100Ex750 Universal Horizontal GAP Lathe photo-1
US$ 17,500 - 17,689 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Long Life Machinery Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 1000mm
Place of Origin Liaoning, China
Brand Name DALIAN
Model Number CW62100Ex750
Voltage 220V 380V 400V 415V 440V 480V 50/60Hz
Power(W) 11/15kW
Dimension(L*W*H) 3840x1100x1920mm
Weight 3500kg
Certification ISO9001:2008; GB/T19001:2008
After-sales Service Provided Engineers available to service machinery overseas

CW62100Ex750 Universal Horizontal GAP Lathe

Machine Features:

  • Standard: spindle head: C11/D11, spindle bore diameter: Φ100/105mm.
  • Optional: spindle head: D11, spindle bore diameter Φ130mm.
  • Guide rail width: 550mm.
  • Guide way hardness: HRC50, Depth1.5mm.
  • Max load weight between 2-centers: 1000kg; with steady rest: up to 2000kg.
  • Standard: Left-hand wheel is equipped;
  • Right-handed wheel shall be informed specially when placing order.
  • Equipped with hydraulic clutch and electrical cabinet.
  • Slide board boxes with vertical and horizontal rapid shift handle.
  • Special indication is required if tailstock sleeve is with a scale.

Specifications

Unit

Parameter

Max. swing over bed

mm

1000

Max. swing over carriage

mm

720

Center distance

mm

750

Width of gap

mm

320

Swing over gap

mm

1230

Width of guide way

mm

550

Spindle bore diameter

mm

105/130 opt

spindle nose



C11/D11 opt

Spindle speed

rpm

(18 speeds) 7.5~1000

Longitudinal feed

mm/r

(64) 0.1~24.3

Cross feed

mm/r

(64) 0.05~12.15

Rapid traverse speed

m/min

3.8

Metric thread

mm

(39)1~240

Inch thread

TPI

(26) 14~1

Module thread

mm

(53) 0.5~120

Diametrical pitch thread

D.P

(24) 28~1

Max. travel of cross slide

mm

493

Travel of top slide

mm

200

Main motor power

kW

11

Rapid traverse motor power

kW

1.1

Coolant pump motor power

kW

0.09

Wooden box/Pallet packing

mm

4100x1160x2080

3840x1100x1920

Gross/Net weight

kg

4850/3500

 Standard Accessories:

Name

Size(mm)

3-jaw chuck

Φ400 (For CW62100E)

4-jaw chuck

Φ630 (For CW62100E)

Dead center

2 sets

Reducing sleeve

1 set

Wrench Tool

1 set

Oil gun

1 set

Instruction Manual

1 set

Certificate of Conformity

1 set

Packing List

1 set

CW62100Ex750 Universal Horizontal GAP Lathe
