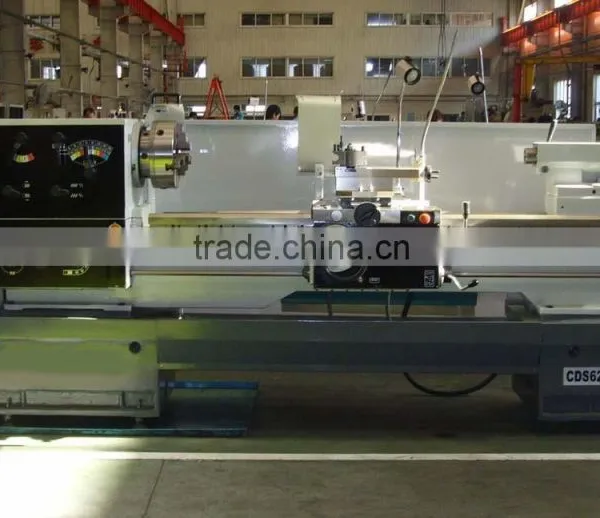

CDS6266B/C Universal Horizontal Lathe
Main Usage:
- It can machine inner circle, outer circle, and end and head surface, taper surface.
- Gap lathe can process the deformation parts. Function is including the drilling and reaming.
- Metric, inch, diametrical pitch, module thread;
Machine Features
l With CE Certificate, with GAP;
l Standard spindle head: D8; spindle hole diameter:82mm;
l 3-jaw chuck and 4-jaw chuck: Direct coupled type
l Guide rail width: 394mm
l Guide rail hardness: HRC50, Depth1.5mm
High-frequency quenching (hardness HRC50)
l Maximum load capacity between two centers: 500kg
l Standard: the lathe is equipped with left-handed wheel;
right-handed wheel shall be informed specially when placing order;
l Apron iswith longitudinal orcross rapid shift handle;
l Special indication is required iftailstock sleeve is with a scale;
l With mechanical clutch and mechanical braking;
l If choose electromagnetic brake from Taiwan,extra+$224 shall be paid.
Specifications |
Unit |
Parameter |
Max. swing over bed |
mm |
660 |
Max. swing over carriage |
mm |
440 |
Max. swing over gap |
mm |
870 |
Width of gap |
mm |
250 |
Max. length of work piece |
mm |
1000/1500/2000/2200/3000 |
Width of guide way |
mm |
394 |
Spindle nose |
|
D8 |
Spindle speed |
rpm |
26~2000 |
Dia. of spindle bore |
mm |
82/105 |
Taper of spindle bore |
|
90/1:20 |
Longitudinal feed |
mm/rev |
0.044~1.48 |
Cross feed |
mm/rev |
0.022~0.74 |
Metric thread |
mm |
0.35~80 (53 or 77) |
Inch thread |
tpi |
7/16~80 (47) |
Module thread |
mm |
0.2~40 (45 or 66) |
Diametrical pitch thread |
DP |
7/8~160 (42) |
Max. travel of cross slide |
mm |
348 |
Travel of top slide |
mm |
150 |
Travel of tailstock quill |
mm |
150 |
Diameter of tailstock quill |
mm |
75 |
Taper bore of tailstock quill |
|
M5 |
Main motor power |
|
10HP(7.5kW)/15HP(11kW.OPTIONAL) |
Wooden box |
mm |
4850×1150×1900 |
Pallet packing |
mm |
4780×1120×1800 |
Packing & Weight |
kgs |
N.M. 2680 G.W. 4250 |
