CW6280Ex1500 universal horizontal lathe machine
- 1000 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
-
Micro CNC Lathe ,CNC Turning Lathe Machines,mini lathe,CNC lathe,rolling cnc milling,hobby cnc lathe,DIY CNC lathe
-
Mini CNC Lathe,Mini CNC Turning Lathe Machines,mini lathe,CNC lathe,rolling cnc milling,hobby cnc lathe,DIY CNC lathe
-
Micro CNC Lathe Benchtop CNC Pocket NC Small CNC China Mini Lathe hobby CNC Lathe For Training
-
CNC Horizontal Lathe
-
CNC Horizontal Lathe
-
CNC Vertical Lathe with C axis for turning, milling, boring, tappering
Product Details
| Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
| Automatic Grade: | Manual | Max. Swing Diameter: | 800mm | Place of Origin: | Liaoning, China |
| Brand Name: | DALIAN | Model Number: | CW6280Ex1500 horizontal lathe machine | Voltage: | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz |
| Power(W): | 11/15kW | Dimension(L*W*H): | 3390x1100x920mm | Weight: | 4030kgs |
| Certification: | ISO9001:2008; GB/T19001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

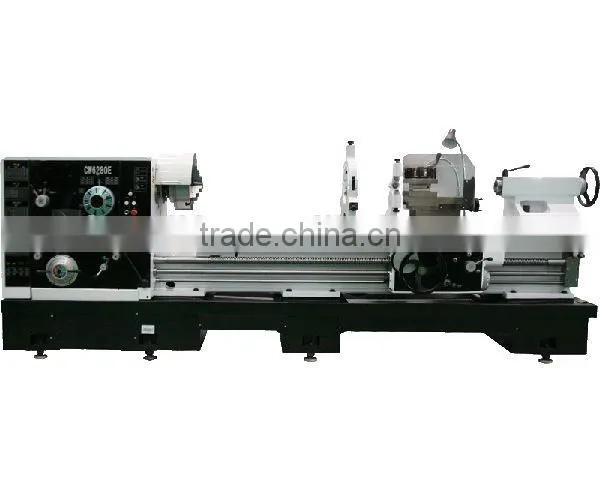

CW6280x1500 universal horizontal lathe machine
Such horizontal lathe machine has following features:
l Standard: spindle head: C11/D11, spindle bore diameter: Φ100/105mm.
l Optional: spindle head: D11, spindle bore diameter Φ130mm.
l Guide rail width: 550mm.
l Guid way hardness: HRC50, Depth1.5mm.
l Max load weight between 2-centers: 1000kg; with steady rest: up to 2000kg.
l Standard: Left-hand wheel is equipped;
Right-handed wheel shall be informed specially when placing order.
l Equipped with hydraulic clutch and electrical cabinet.
l Slide board boxes with vertical and horizontal rapid shift handle.
l Special indication is required if tailstock sleeve is with a scale.
Specifications | Unit | Parameter |
Max. swing over bed | mm | 800 |
Max. swing over carriage | mm | 520 |
Center distance | mm | 1500 |
Width of gap | mm | 320 |
Swing over gap | mm | 1000 |
Width of guide way | mm | 550 |
Spindle bore diameter | mm | 105 |
spindle nose |
| C11/D11 |
Spindle speed | rpm | (18 speeds) 7.5~1000 |
Longitudinal feed | mm/r | (64) 0.1~24.3 |
Cross feed | mm/r | (64) 0.05~12.15 |
Rapid traverse speed | m/min | 3.8 |
Metric thread | mm | (39)1~240 |
Inch thread | TPI | (26) 14~1 |
Module thread | mm | (53) 0.5~120 |
Diametrical pitch thread | D.P | (24) 28~1 |
Max. travel of cross slide | mm | 493 |
Travel of top slide | mm | 200 |
Main motor power | kW | 11 |
Rapid traverse motor power | kW | 1.1 |
Coolant pump motor power | kW | 0.09 |
Wooden box Pallet packing | mm | 3490×1150×2080 3390×1100×1920 |
Gross/Net weight | kg | 5400/4030 |
Name | Size(mm) |
3-jaw chuck | Φ400 (For CW6280E) |
4-jaw chuck | Φ630(For CW6280E) |
Dead center | 2 sets |
Reducing sleeve | 1 set |
Wrench Tool | 1 set |
Oil gun | 1 set |
Instruction Manual | 1 set |
Certificate of Conformity | 1 set |
Packing List | 1 set |
