Home > Products > Pipe threading lathe > PTFE skived film machine

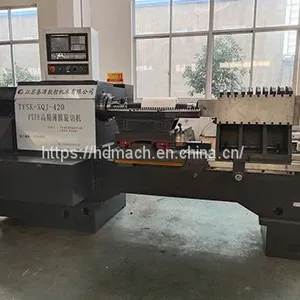

PTFE skived film machine
- 1 Set / Sets per Month
- Shanghai Port
- T/T L/C
You May Like
Product Details
| Brand Name | TY | Place of Origin | China | |
| Model Number | TYSK-XQJ-420 | Type | Horizontal | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 4500kg Approx. | |
| Dimension(L*W*H) | 3800X1550X1430 | Voltage | 380V | |
| Condition | New | Power(W) | 1500 | |
| CNC or Not | CNC |
Product Description
PTFE skived film machine is mainly used to skive PTFE raw material ( less than φ420mm, length 100 - 850 mm) into film with a certain thickness.
1. Peeling film width: 100~850 mm
2. Remaining diameter of rotary cutting: ≥φ60mm
3. Peeling film thickness: 0.01~1mm (with static pressure spindle unit)
4. Raw material maximum diameter: Φ 420 mm
4. 5. Raw material core diameter: φ 90mm
6. Discharging speed: ~20m/min
7. Feed speed: 0.05~0.5mm/min
8. Spindle speed: 8~60 RPM
9. No-load speed: 300mm/min
10. Total installed capacity: ~15KW
11. Dimensions (L× W× H): 3800X1550X1430
12. Machine net weight: 4500kg Approx.
