CNC Pipe Threading Lathe for Drill Collar (slant Bed)

Taixing Hongyuan CNC Machine Co.,Ltd

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Automatic Grade:

Automatic

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Automatic Grade Automatic

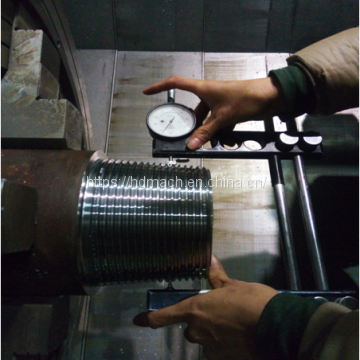

This machine is special for threading drill collar. It has the advantage of high

accuracy, high rigidity, big power etc. Machine bed is 45°slant. The guide way is steel inlaid

guideway. Use 8-station electric turret for outside screw, dual immovable tool rest and

compound tool bar for inside screw, tool setting is convenient. Spindle is high accuracy, high rigidity,

can assure drill collar thread quality. It has automatic lubricating and oil way fault alarm

function. Equipped with big power centrifugal cooling pump, prolong the cutter life. The machine is

full closed covering, good water proof. With auto pipe loading/unloading device, work efficiency is highly

improved.

Items	Unit	HY—338F	HYSK-630TA
Max. swing diameter over bed	mm	φ880	φ800
Chuck diameter	mm	φ630	φ780
Max. holding diameter	mm	φ245	φ310
The range of machining diameter	mm	90～245	90～310
The range of machining length	mm	600	600
Max. swing diameter over saddle	mm	φ320	φ350
Spindle bore diameter	mm	φ255	φ320
Spindle speed	r/min	50～360	50～320
Main motor power	kW	22	37
X-axis Max. travel	mm	450	400
Z-axis Max. travel	mm	900	800
X/Z servo motor	N.m	20/27	20/27
Rapid movement speed (X/Z）	m/min	6/8	8/10
Tool rest station number	NO.	4+2	8+2
Spindle center height	mm	1150	1150
Roughness	mm	Ra1.6	Ra1.6
Machine weight	㎏	9600	12800
Machine dimension（L×W×H）	mm	450022002000	520024002400
