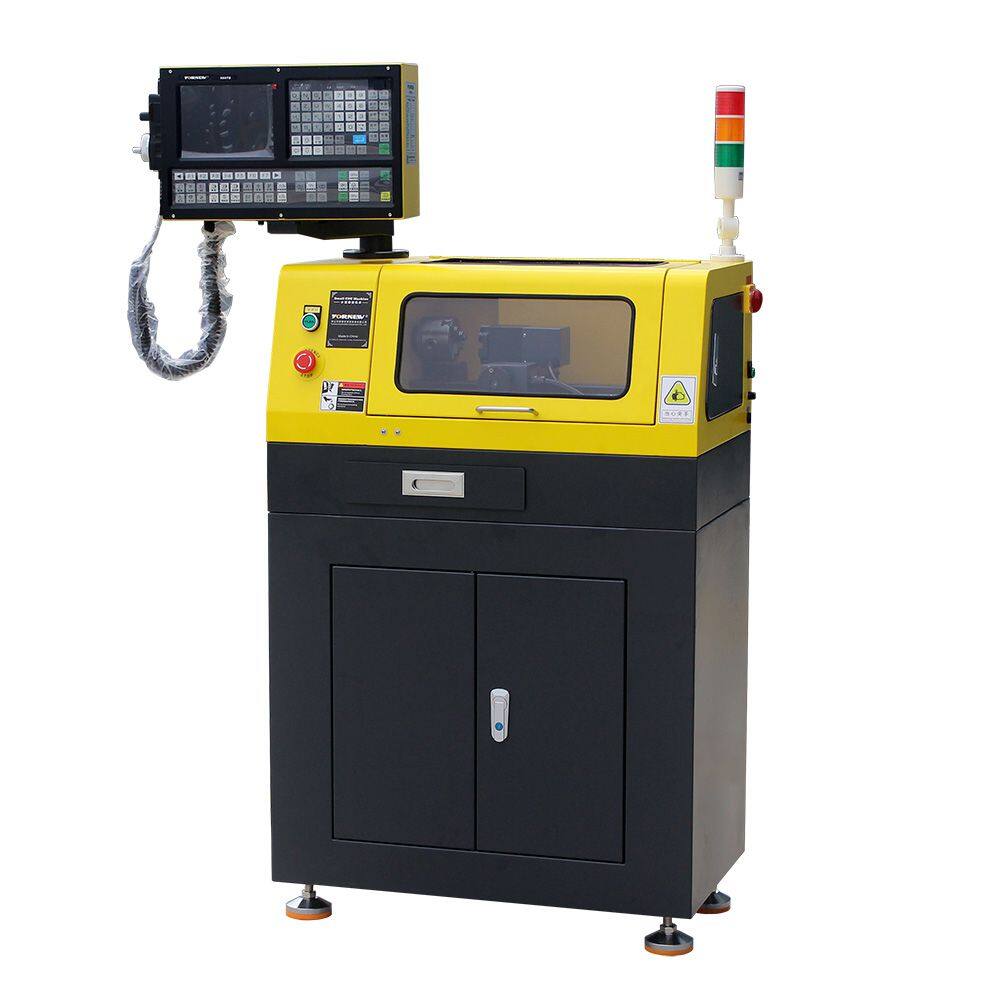

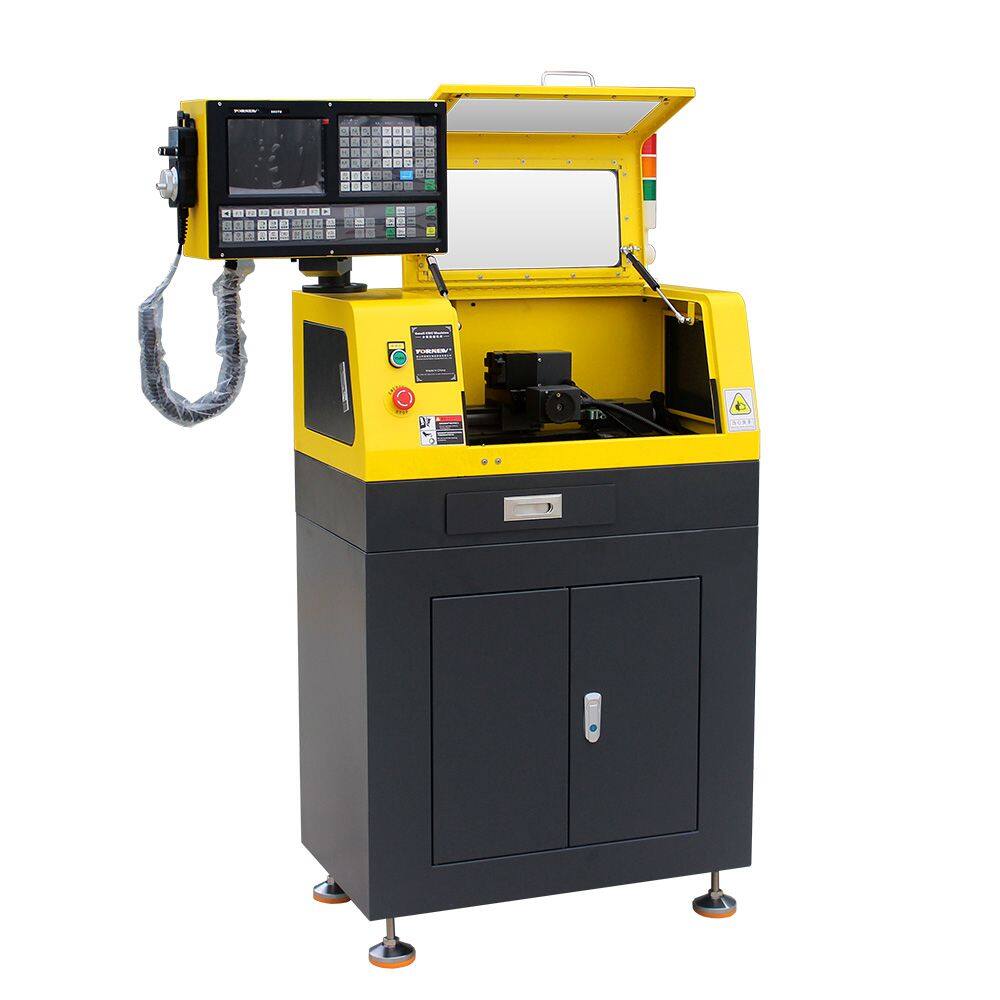

YORNEW Educational Mini CNC Lathe, Vocational Cnc Lathe, Desktop Cnc, Micro Cnc
Product Spotlights
YORNEW Educational Mini CNC Lathe, vocational cnc lathe, desktop cnc, micro cnc
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5 Axis Mini CNC Mill, RTCP, 5 Axis, Machine Center, Education Cnc, Garage CncNegotiableMOQ: 1 Set -
Small CNC Machine Vocation School CNC Lathe Hobbist CNC Machine, 8 Turret,US$ 1 - 100MOQ: 1 Set
-
Small CNC Machine Vocation School CNC Lathe Hobbist CNC MachineUS$ 1 - 100MOQ: 1 Set
-
YORNEW Desktop CNC Lathe Machine, Education Cnc, Vocation Cnc, Hobby CncNegotiableMOQ: 1 Set
-
Mini CNC| Small CNC Mill|Small Desktop CNC Machine |Small Benchtop CNC MillsUS$ 6500 - 6900MOQ: 1 Set
Automatic Grade
Automatic
CK140 Mini CNC Lathe,With additional course content, how-to projects, and a robust support team, the YORNEW Tools Desktop CNC Machine is a great STEAM tool to skill up on CNC machining. It’s an excellent addition to any shop, lab, classroom, studio, or makerspace.
Technical parameters | |
|---|---|
| Turning diameter over bed(max) | 140mm |
| Travel across slide | 75mm |
| Chuck diameter | 80mm |
| Spindle speed | 100-2000r/min(control speed of G code) |
| Spindle through-hole | 11mm |
| Spindle mount | MT2 |
| Spindle motor power | 150W |
| X travel | 70mm |
| Z travel | 160mm |
| The max moving speed | 2000mm/min |
| The max feeding speed | 1000mm/min |
| Control system | KY 980Tc Turning CNC System |
| Tool position | 4 |
| Tool dimension | 8×8mm |
| Tailstock taper | MT1 |
| Tailstock sleeve diameter | 20mm |
| Travel of tailstock | 25mm |
| Positioning accuracy | 0.02mm |
| Repeatability accuracy | 0.02mm |
| Power | 220VAC / 110VAC |
| Weight(NW/GW) | 50/65KG |
| Overall dimension | 750*450*1300mm |
| Packing size | 850*470*470mm |
