Product Details
Brand Name: | Hesheng | Model Number: | Case unpacking machine |
Product Description
「Introduction 」

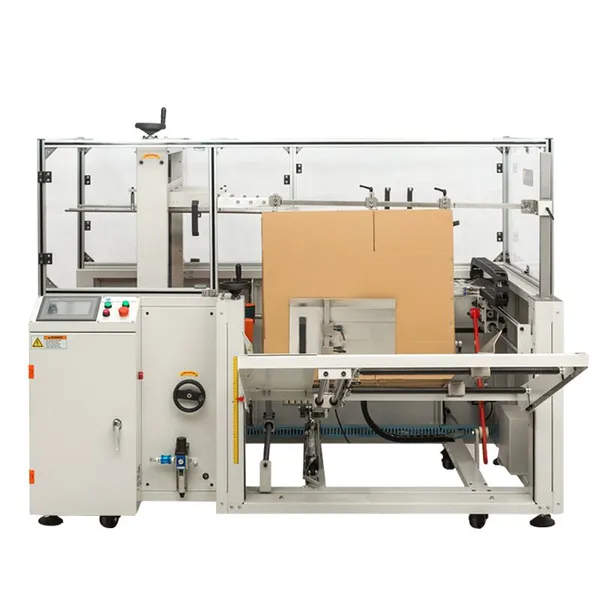

Open machine set automatic unpacking, automatic cover, automatic sealing at the bottom of the carton, the machine adopts PLC + man-machine interface control, fold bottom does not stay, conveying in folding bottom, bottom cover, and complete suction box, forming, bottom, bottom cover, easy to operate, simple maintenance, stable performance, is the assembly line equipment needed for automated scale production.
「features 」
◆ The selection of high-performance motor, the power is strong and stable, can be uninterrupted fast and efficient operation, open the box is more stable.
◆ Equipped with a blade protective device to avoid accidental stab injuries during operation.
◆ With tape and carton lack of material alarm function, no material automatic reminder, convenient for operators to add materials in time.
◆ Light volume, machine parts performance precision and durable, the operation process without vibration, stable operation and long life.
◆ Rationalized design, synchronous absorption and forming, folding bottom and bottom cover a synchronous forming.
「machine parameters 」
〔〔Automatic unpacking machine——HS-KX4540-A〕〕
Unpacking speed: 8-10 pieces / min
Opening length range: 130-450mm (length and width not exceeding 800)
Opening width range: 80-400mm (length and width not exceeding 800)
Open height range: 90-350mm
Worktop height: 600mm
Power supply voltage: 220V, 60Hz
Power: 240W
Air compressor: 2 / 3L, 5 kg force / square cm 2
Overall dimension: L2075 * W1270 * H (1475-1550) mm
Weight: 450kg
〔〔Automatic unpacking machine——HS-KX4540〕〕
Unpacking speed: 8-12 pieces / min
Opening length range: 250-450mm
Out-box width range: 150-400mm
Open height range: 150-400mm
Countertop height: 600-780mm
Power supply voltage: 220V, 60Hz
Power: 240W
Air compressor: 2 / 3L, 5 kg force / square cm 2
Overall dimension: L2075 * W1270 * H (1575-1650) mm
Weight: 450kg
〔〔Bedroom unpacking machine——HS-KX3620W〕〕
Unpacking speed: 20-25 boxes / min
Carton length range: 190-360mm
Carton width range: 80-200mm
Carton height range: 100-200mm
Power supply: 110 / 220V, 50 / 60Hz
Power: 1KW
Tape size: 36 / 48mm
Carton temporary stock: 600mm
Air consumption: 300 N L/min
Table height: (910 + 30) mm
Machine size: L1680 * W1210 * H1260mm
Machine weight: 700kg
〔〔Bedroom unpacking machine——HS-KX5140W〕〕
Carton length range: 240-510mm
Carton width range: 190-400mm
Carton height range: 120-400mm
Speed: 25-30 cases / min
Voltage: 380V
Power: 746W
Machine size: L2372 * W1210 * H1820mm
Weight: 1,000 kg
Air consumption: 300 N L/min
Temporary carton stock: 80 pcs (1000mm)
〔〔Vertical and high-speed unpacking machine——HS-KX4540-B〕〕
Unpacking speed: 15-16 boxes / min
Opening length range: 250-450mm
Out-box width range: 150-400mm
Open height range: 100-350mm
Worktop height: 600mm
Power supply voltage: 220V, 50Hz
Use of gas source: 6-7 kg force / square cm 2
Overall dimension: L2400 * W2050 * H1450mm
Weight: about 400kg
Note: As the machine is constantly updated, the specific parameters are subject to the physical or contract.
