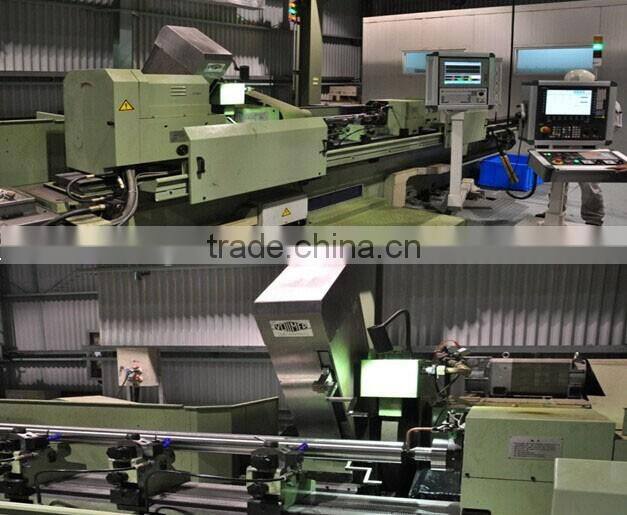

M1332 Series Manual Cylindrical Grinding Bachine With ce

US$ 10,500 - 25,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Cylindrical Grinding Machine

CNC or Not:

Normal

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Cylindrical Grinding Machine

CNC or Not Normal

Max. Grinding Diameter 320mm

Max. Grinding Length 1500mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number M1332x1000; M1332x1500

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Power(W) 7.5kW

Dimension(L*W*H) depends

Weight depends

Certification CE Certificate; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

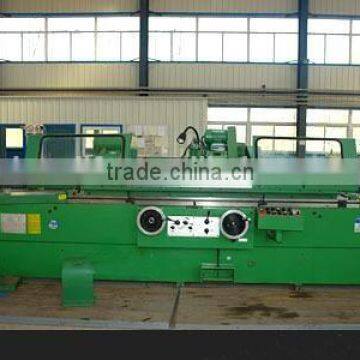

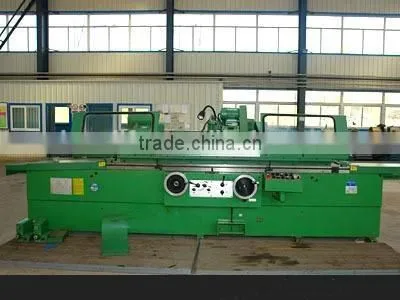

M1332x1000/1500 cylindrical grinding machine

Main Features

Such cylindrical grinding machine has following features:

a. Wheel bearings hybrid bearing, high accuracy and good rigidity

b. The first frame spindle driven by a DC motor, variable speed within the speed range.

c. Tailstock by a dense ball in the form of its rigidity.

d. With a grinding machine indicator to facilitate high-precision grinding of the workpiece.

Main Technical Data

M1332x1000/1500 cylindrical grinding machine
Specifications		Unit	Parameter	Parameter
Outside diameter grinding	Use Center Frame	mm	Min/Max: 8/60	Min/Max: 8/60
Outside diameter grinding	No Center Frame	mm	Min/Max: 8/320	Min/Max: 8/320
Inside diameter grinding	Use Center Frame	mm	Min/Max: 30/125	Min/Max: 30/125
Inside diameter grinding	No Center Frame	mm	Min/Max:16/125	Min/Max:16/125
Max. Workpiece Weight		kg	150	150
Max. Grinding Length		mm	1000	1500
Max. Grinding Diameter		mm	Φ320	Φ320
Tip Distance		mm	1000	1500
Height of center		mm	180	180
Motor total power		KW	7.455	7.455
Wheel Size ( diameter x width x bore )		mm	Min/Max Φ280 x 50 xΦ203 Φ400×50×Φ203	Min/Max Φ280 x 50 xΦ203 Φ400×50×Φ203
Peripheral Speed of Grinding Wheel		m/s	35/17.5	35/17.5
Wheel Spindle Speed		r/min	1680/840	1680/840
Max. Transferred Quantity (Fast-moving Included)		mm	241	241
Rapid Advance and Retreat for Grinding Carriage		mm	25	25
Wheel Size (dia ×width×bore )		mm	Min: φ15×20×φ5 Max: φ50×25×φ13	Min: φ15×20×φ5 Max: φ50×25×φ13
Wheel Spindle Speed( HJX33-03A)		r/min	10000/15000	10000/15000
Machine Size (L×W×H)		mm	3400×1620×1500	4400×1620×1500
