Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > Centerless Grinder

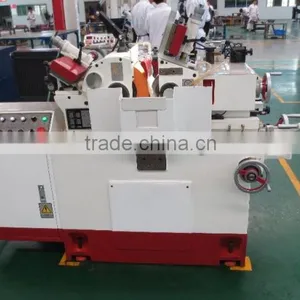

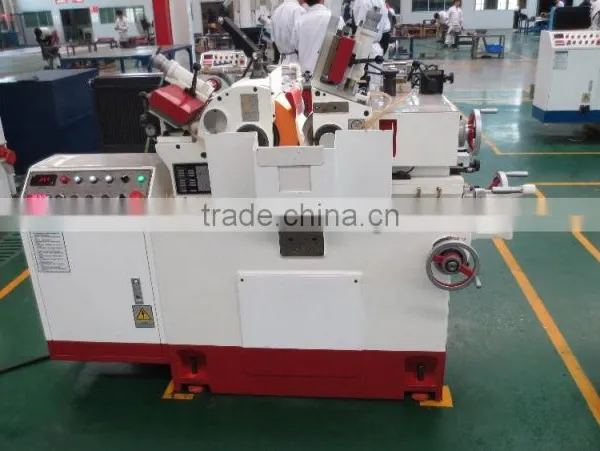

Centerless Grinder

Name: Centerless Grinder
Brand: DALIAN
SKU: 102717057

US$ 31,000 - 70,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, centerless grinding machine

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, centerless grinding machine

CNC or Not Normal

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number M1050A M1080B M1083A

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Power(W) 7.5~15kW

Certification CE Certificate; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

Centerless Grinding Machine

Machine Features

This machine is plain cylindrical grinder, which is mainly used for grinding cylindrical and conical surface of parts, ideal for tool, repair and small & medium-batch workshop.

Worktable longitudinal traverse is actuated at infinitely variable speed by hydraulic means or by hand operation. Wheelhead cross feed is provided with hyd. rapid approach & withdrwal, manual feed. Workpiece, grinding wheel, oil-pump, coolant pump are driven separately by their individual motors.

Specifications		Unit	M1050A	M1080B	M1083A
Max. workpiece dia. to grinded	Continuous grinding	mm	Φ2 ~ Φ50	Φ5 ~ Φ80	Φ10 ~ Φ150
Max. workpiece dia. to grinded	Infeed grinding	mm	Φ2 ~ Φ50	Φ5 ~ Φ80	Φ10 ~ Φ150
Max. grinding length	Continuous grinding	mm	150	230	250
Max. grinding length	Infeed grinding	mm	120	190	190
KVA total power of motor		KW	13.89	17.04	20.38
Grinding wheel size (outside dia × width ×bore )		mm	P400150203	P500200305	P600200305
Guide wheel size (outside dia × width × bore )		mm	PSA300150127	PSA350200127	PSA350200127
Grinding wheel spindle speed		r/min	1668	1300	1150
Guide wheel spindle speed		r/min	20 ~200	13/16/22/29/40/53/73/94	7/12/18/23/29/34.58
swivel angle of guide wheel	In vertical plane		- 2 ° ~ + 5 °	- 2 ° ~ + 5 °	- 2 ° ~ + 5 °
swivel angle of guide wheel	In horizontal plan		0 ~ + 3 °	0 ~ + 3 °	0 ~ + 3 °
Travel per rev. o f infeed handwheel		mm	0.002	0.05	0.05
Travel per rev. of dresser		mm	0.01	0.01	0.01
Distance from center line of grinding wheels to bracket bottom surface		mm	220	210	210
Machine Size (L×W×H)		mm	182016801500	194016701500	2600 1850 1800
Gross/Net weight		kg	2800	3900/3650	6600
