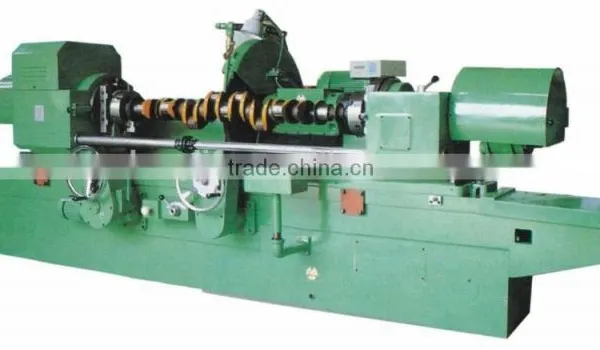

LFM8260Bx3000 Crankshaft Grinding Machine

FOB Price

USD $65,317 - $90,500 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Other, Crankshaft Grinding Machine	CNC or Not:	Normal
Max. Grinding Diameter:	600mm	Max. Grinding Length:	3000mm	Place of Origin:	Shanghai, China
Model Number:	LFM8260Bx3000	Voltage:	220V 380V 400V 415V 440V 480V	After-sales Service Provided:	Engineers available to service machinery overseas

Crankshaft Grinding Machine

Machine Features

a. Such machine is suitable for grinding the crankshaft of marine diesel engines and vehicle diesels.

b. It is applied to batch-production, single-piece production or repair factories.

c. It can also be used for cylindrical grinding.

Specifications	Unit	Parameter
Max. swing Dia.	mm	600
Dia. to be ground	mm	Max. 300 Min. 100
Radius of crankpin	mm	Max. 160 Min. 0
Radius of crankpin	mm	150
Center height	mm	420
Length of work	mm	1200~ 3000
Max. weight of work	kg	400
Workhead center tapered bore		Morse #6
Tailstock center tapered bore		Morse #6
Guide-way dimensions: width x center distance	mm	For machine bed : 120 x 110 x 360
Guide-way dimensions: width x center distance	mm	For wheelhead : 150 x 140 x 600
Dimensions of Wooden Case;	cm
Gross weight	kg

General Performance

Working accuracy

1. Roundness 0.015mm

2.Cylindricity 0.015mm

3. Roughness: cylindrical / end- face Ra 0.4 / Ra0.8

Main Free Standard Accessories

Specifications	Unit	Note
Work Dia. clamping between right and left chuck	mm	100~ 300
Work Dia. supported by steady rest	mm	100 ~300
Wheel peripheral and end-face dresser		with
Suspension type measuring stand	mm	100 ~ 200
