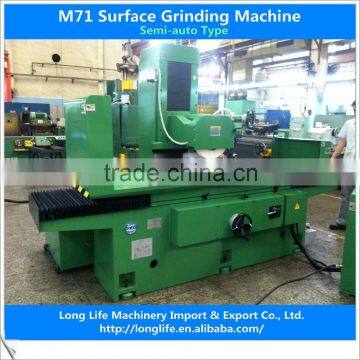

M7140x800 CE semi auto surface grinding machine
Such cylindrical grinding machine has following features:
l It has higher accuracy and cutting efficiency.
l Vertical movable type wheelhead can load heavier workpiece than saddle type.
l The table in longitudinal movement driven by the vane pump, stability and low noise, easy opration.
l The temperature of oil pool is low and the precision is fit for National Standard (GB/T4022-1983).
l Grinding head has rapid movements mechanism invertical movement, but also manually feed.
l Grinding head vertical move can be adopted with power rapid movement or hand micro feed.
l Grinding head motor and pump motors are high-grade motor, electrical carry out the national safety standards.
l CE Standard and CE Certificate;
Specifications |
Unit |
Parameter |
working area |
mm |
400×800 |
Longitudinal table travel |
mm |
900 |
Cross feed saddle travel |
mm |
450 |
Distance from spindle center to table |
mm |
600 |
Max. workpiece weight |
kg |
520 |
T-slots |
mm×N |
14×1 |
Table speed |
m/min |
5~25 |
Feed amount by hand wheel |
mm/gra. |
0.02 |
Feed amount by hand wheel |
mm/rev. |
5 |
Cross auto feed |
mm/min |
0.5~10 |
Table auto cross feed |
mm/min |
1250 |
wheel size |
mm |
350×40×127 |
spindle speed |
rpm |
1450 |
Up-down handwheel feed |
mm |
700 |
Vertical on hand wheel |
mm/gra. |
0.002 |
Vertical on hand wheel |
mm/rev. |
0.5 |
Auto feed regulating amount |
mm |
0.002~0.04 |
Up-down rapid movement speed (ZD/CK) |
mm/min |
230/130 |
spindle speed |
KW |
2.8 |
Up-down drive motor |
KW |
0.09 |
Water-filling motor |
W |
47 |
Cross drive motor |
W |
80 |
Machine height |
mm |
1880 |
Floor space |
mm |
2350×3600 |
Net weight |
kg |
3500 |
Gross weight |
kg |
4600 |
No. |
Item |
Size |
Quantity |
Note |
1 |
Tool box |
12*7*5 |
1 set |
|
2 |
Hex wrench |
1.55-10 |
1 pc |
|
3 |
Open spanner |
22-24 |
1 pc |
|
4 |
Socket spanner |
32# |
1 pc |
|
5 |
Tools for assembly and disassembly |
62006022 |
1 set |
|
|
Diamond dresser |
USA |
1 |
|
|
Balance rod |
00A00018 |
1 |
|
|
Grinding wheel |
350*40*127 |
1 |
|
|
Foundation screws |
6313005 |
5 sets |
|
|
Foundation plate |
20013004 |
5 |
|
|
Balancer |
00A00016 |
1 |
|
|
Balancer screws |
00A00019 |
3 |
|
|
Working lamp |
JC-38 |
1 |
|
|
Bulbs |
24V 50W |
1 |
|
|
Flanges |
6306012 |
1 set |
|
|
Fuse(small) |
3A |
1 |
|
|
Fuse(small) |
5A |
1 |
|
|
Fuse(big) |
3A |
2 |
|
|
Scraper |
618 |
1 |
|
|
Coolant water tank |
63 |
1 set |
|
|
Oil tank |
84 |
1 set |
|
|
Flush water plate |
84 |
4 pcs |
|
|
Instruction manual |
For AHR |
1 set |
|
