M818 Manual Surface Grinding Machine

M818 Manual Surface Grinding Machine photo-1
US$ 3,117 - 3,217 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian/Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Surface Grinding Machine
CNC or Not Normal
Max. Grinding Diameter 400mm
Max. Grinding Length 1100mm
Place of Origin Shanghai, China
Brand Name LFM
Model Number M818 manual surface grinding machine
Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz
Power(W) 1.5kW
Dimension(L*W*H) 1330x1150x1680mm
Weight 920kgs
Certification CE; ISO9001:2008; GB/T 19001:2008
After-sales Service Provided Engineers available to service machinery overseas

                  M818 manual surface grinding machine



Main Features

 Such manual surface grinding machine has following features:

compact construction, excellent capability, and suitable to grinding surface and complex form surface by form dressed whell.

it can be performed without power feeding.

the distance between the grinding wheel and working table has been enlarged;

reliablity, flexibility, high accuracy, high rigidity, small thermo-deformation and low noise;

CE Standard and CE Certificate;

Main Technical Data

Item/ Model

Unit

M818A

Max. width to be ground

mm

220

Max. length to be ground

mm

470

Max. height to be ground

mm

350

Table size

mm

210x450

Permanent magnetic chuck size(optional)

mm

200x400

Max. longitudinal travel

mm

500

Max. cross travel

mm

240

Distance from spindle center to table surface

mm

450

Feed of vertical handwheel(Per rev.)

mm

1

Feed of vertical handwheel(Per div.)

mm

0.005

Grinding wheel size(OD*W*ID)

mm

200x13x31.75

Spindle speed

r/min

3450(60Hz) 2850(50Hz)

Power of spindle head

kW

Standard 1.5(build in spdindle:1.1kW)

Max. load capacity (include permanent magnetic chuck)

kg

128

Machine weight

kg

920

Machine appearance size(L x W x H)

mm

1330x1150x1680

Package dimension(L x W x H)

mm

1153x1413x1950

Package size(dismantle table) (L x W x H)

mm

1400x1120x1980

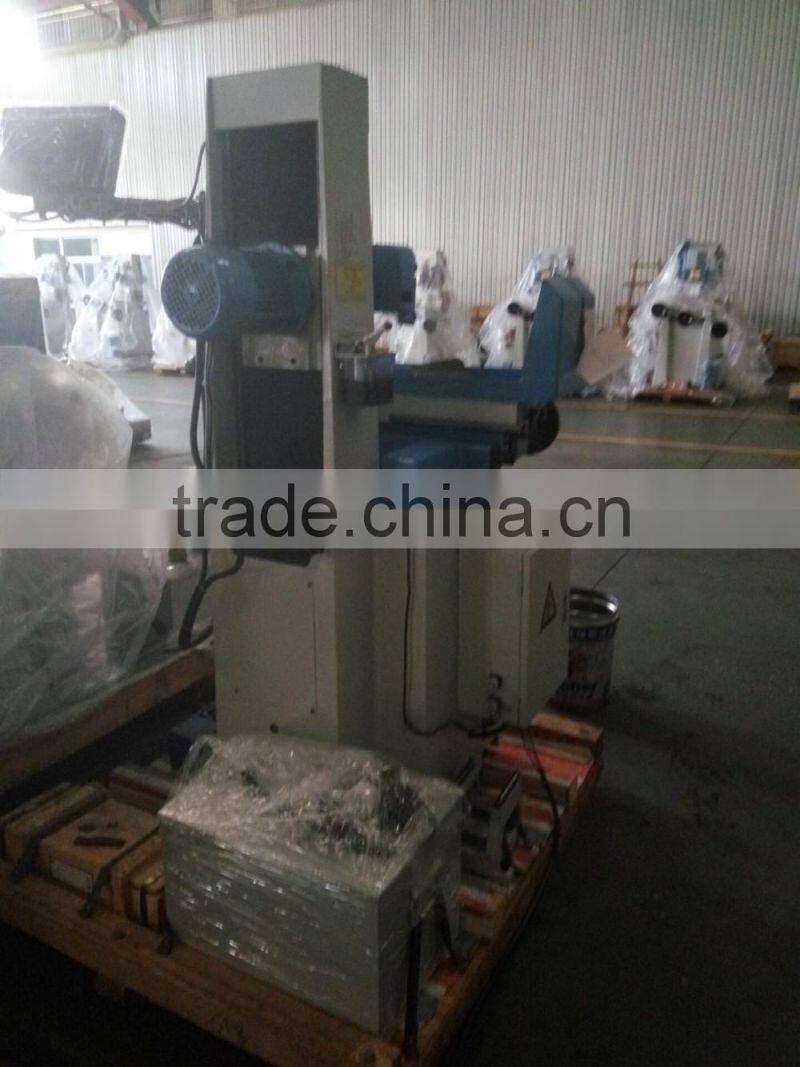

Real Photos:

Kinds of colors for your choice/can be Customized according to user's demand;

M818 manual surface grinding machine
M818 manual surface grinding machine
