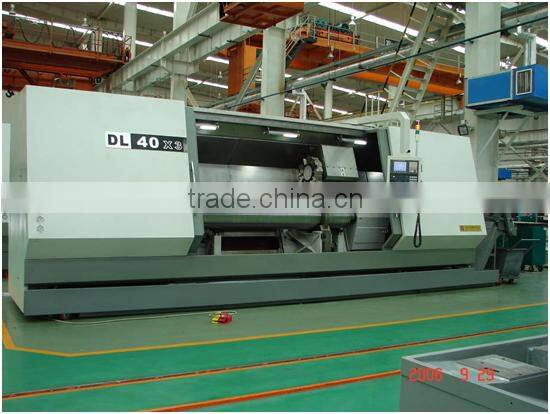

DL40 CNC Slant Bed Lathe specification
1. Rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability;
2. The machine bed is made of heat stabilized cast-iron;
3. A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining;
4. Various configuration are available with spindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm;
Standard Configuration
5. 70° inclined bed split and box guide way;
6. spindle stepless speed;
7. 12-station hydraulic turret;
8. 15″ hydraulic Solid chuck and Hydraulic tailstock;
9. Lateral waste device and Closed-end protection;
Specifications |
Unit |
Parameter |
Swing over bed |
mm |
Φ800 |
Center distance |
mm |
2000 |
Max. turning diameter(Shafts/ Discs) |
mm |
Φ550/750 |
Guide way type |
mm |
box-type |
Chuck size |
mm |
15" |
Spindle nose |
|
ISO A2-11 |
Spindle speed |
rpm |
20~2000 |
Main spindle motor power(S6) |
kW |
22(30) |
Spindle bore diameter |
mm |
Φ100 |
X-axis travel |
mm |
375 |
Z-axis travel |
mm |
2160 |
X-axis rapid traverse |
m/min |
12 |
Z-axis rapid traverse |
m/min |
16 |
Positioning accuracy |
mm |
(X)0.019(Z)0.040 |
Repeat positioning accuracy |
mm |
(X)0.0012(Z)0.015 |
Turret: number of stations |
mm |
12 |
Tool size |
mm |
32×25 |
Tailstock quill diameter |
mm |
¢160 |
Tailstock quill travel |
mm |
180 |
Tailstock taper |
MT |
5 |
Machine size: L×W×H |
mm |
5950×2358×2600 |
Net weight |
T |
13 |
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
