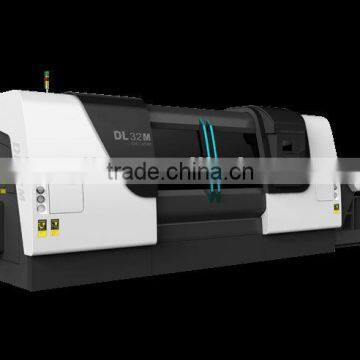

DL32M Slant-bed CNC Lathe Technical Data
1. Rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability;
2. The machine bed is made of heat stabilized cast-iron;
3. A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining;
4. Various configuration are available with spindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm;
Standard Configuration
5. 45° inclined bed split and box guide way;
6. spindle stepless speed;
7. 12-station hydraulic turret;
8. 15″ hydraulic Solid chuck and Hydraulic tailstock;
9. Lateral waste device and Closed-end protection;
Specifications |
Unit |
Parameter |
Swing over bed |
mm |
Φ680 |
Center distance |
mm |
1000/1500/2000/3000 |
Max. turning diameter(Shafts/ Discs) |
mm |
Φ400/630 |
Guide way type |
mm |
box-type |
Chuck size |
mm |
15" |
Spindle nose |
|
ISO A2-11 |
Spindle speed |
rpm |
20~2000 |
Main spindle motor power(S6) |
kW |
22(30) |
Spindle bore diameter |
mm |
Φ100 |
X-axis travel |
mm |
375 |
Z-axis travel |
mm |
1030 |
X-axis rapid traverse |
m/min |
13 |
Z-axis rapid traverse |
m/min |
13 |
Positioning accuracy |
mm |
(X)0.012(Z)0.025/0.03/0.04/0.05 |
Repeat positioning accuracy |
mm |
(X)0.007(Z)0.012/0.013/0.016/0.02 |
Turret: number of stations |
mm |
12 |
Tool size |
mm |
32×25 |
Tailstock quill diameter |
mm |
Φ160 |
Tailstock quill travel |
mm |
180 |
Tailstock taper |
MT |
5 |
Machine size: L×W×H |
mm |
6240×2040×2240 |
Net weight |
kg |
12000 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
