CE Certified Linear Way and Box Way Vertical Machining Center
- 100 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
- SMT panasonic CM202-DS
- vmc650 CNC machining center|CNC machining center 650
- vmc850 CNC machining center|Vertical Machining Center
- vmc650 CNC machining center|CNC machining center 650
- Plastic product processing flame-retardant ABS mold production Plastic shell Plastic accessories Injection molding mold design
- Manufacturer abs blow mold processing PP PE Injection mold construction processing large electronic product mold injection
Product Details
Condition: | New | Type: | Vertical | Place of Origin: | Liaoning, China |
Brand Name: | DALIAN | Model Number: | VDL600A VDL1000 VDL1200 VDL1400A VDF850 VDF1000 VDF1200 VDF1500 VDF180 | Voltage: | 220V/380V/415V/440V/480V |
Certification: | CE; ISO9001:2008; GB/T19001:2008 | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

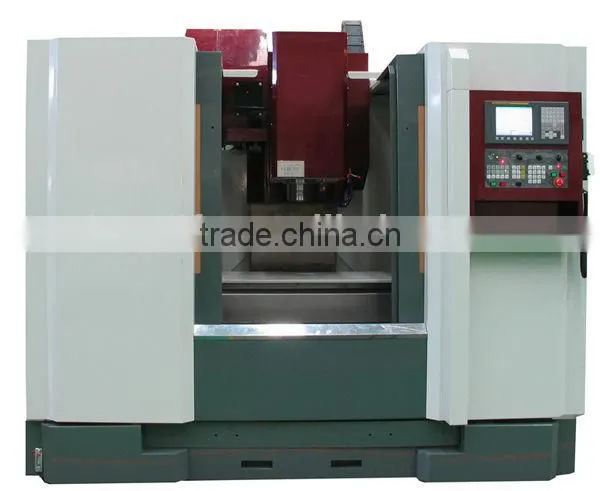

Vertical Machining Center
There are four series of CNC machining center in our company:
CNC Horizontal Machining Center, CNC Vertical Machining Center, CNC High-speed Vertical Machining Center and CNC Milling Machine
CNC Vertical Machining Center: VDL500;VDL600A;VDL800;VDL1000;VDL1200; VDL1400A;VDF850 ;VDF1000; VDF1200; VDF1500; VDF1800
VDF series: Box way;
VDL series: X/Y-Linear way, Z-box way;

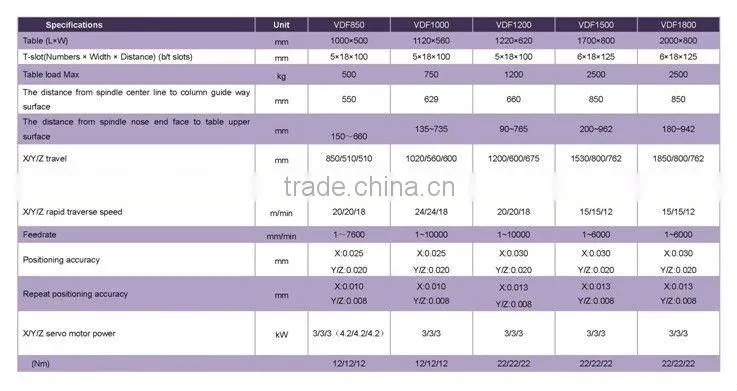

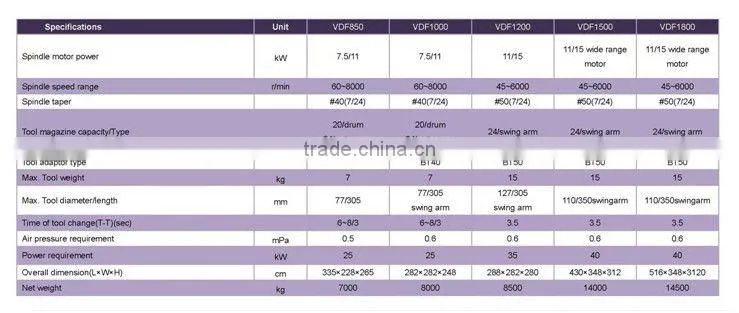

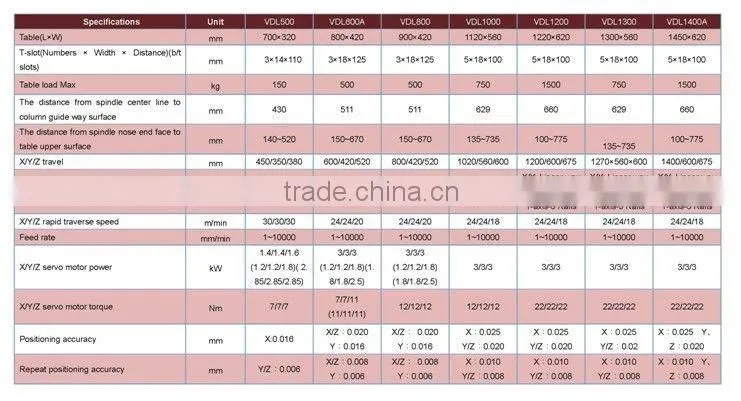

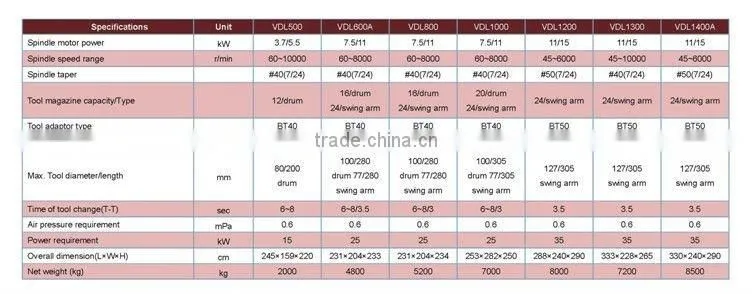

Item | VDL500 | VDL600A | VDF850 | VDL1000 VDF1000 | VDL1200 VDF1200 | VDL1400A | VDF1500 | VDF1800 |
Table(L×W)(mm) | 700×320 | 800×420 | 1000×500 | 1120×560 | 1220×620 | 1450×620 | 1700×800 | 2000×800 |
T-slot(Numbers×Width×Distance) | 3×14×110 | 3×18×125 | 5×18×100 | 5×18×100 | 5×18×100 | 5×18×100 | 6×18×125 | 6×18×125 |
Table load Max(kg) | 150 | 500 | 500 | 750 | 1500 | 1500 | 2500 | 2500 |
X/Y/Z rapid traverse speed(m/min) | 30/30/30 | 24/24/20 | 20/20/18 | 24/24/18 | 24/24/18 | 24/24/18 | 15/15/12 | 15/15/12 |
Feed rate(mm/min) | 1~10000 | 1~10000 | 1~7600 | 1~10000 | 1~10000 | 1~10000 | 1~6000 | 1~6000 |
Spindle speed range(r/min) | 60~10000 | 60~10000 | 60~8000 | 60~8000 | 45~6000 | 45~6000 | 45~6000 | 45~6000 |
Tool magazine capacity/Type | 12/drum | 16/drum 24/swing arm | 20/drum | 20/drum 24/swing arm | 24/swing arm | 24/swing arm | 24/swing arm | 24/swing arm |
Tool adaptor type | BT40 | BT40 | BT40 | BT40 | BT50 | BT50 | BT50 | BT50 |
Max. Tool weight (kg) | 6 | 7 | 7 | 7 | 15 | 15 | 15 | 15 |
Time of tool change(T-T) (sec) | 6~8 | 6~8/3.5 | 6~8/3 | 6~8/3 | 3.5 | 3.5 | 3.5 | 3.5 |
Air pressure requirement (MPa) | 0.6 | 0.6 | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Power requirement (kW) | 15 | 25 | 25 | 25 | 35 | 35 | 40 | 40 |
