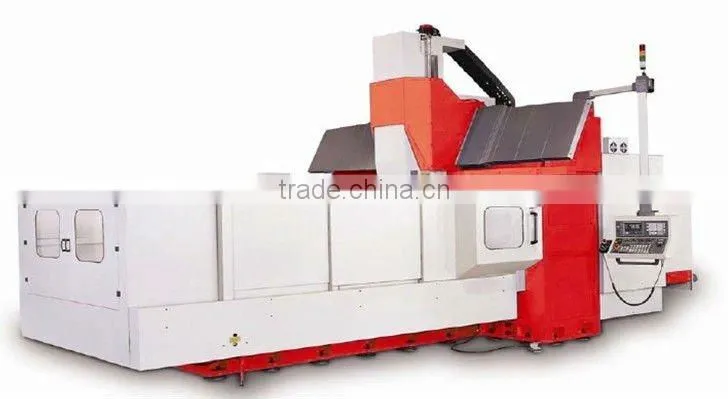

CNC Gantry Machining Center

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Other, Gantry, machining center

Place of Origin:

Liaoning, China

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Gantry, machining center

Place of Origin Liaoning, China

Model Number S-V2017;S-V2020;S-V3020; S-V3025;S-V3027;

After-sales Service Provided Engineers available to service machinery overseas

CNC Gantry Machining Center

Usage Range

Heavy workpiece processing

Internal and external cylindrical and conical surface and plane

Grooving,head face,severance;

Milling and boring,threading,grinding,tapping,etc;

UNIT /Model Specifications	Unit	S-V2017	S-V2222	S-V3017	S-V3022	S-V3027
Table size ( L × W )	mm	2100x1200	2000x1800	3000x1200	3000x1800	3000×2300
T-slot (Nos × W × Distance) (b / t slots)	mm	22x7x150	22x9x180	22x7x170	22x9x180	11×28×200
Max. table load	kg	3000	4000	6000	6000	8000
Distance from spindle nose to table	mm	175~975	250~1250	115~915	250~1250	260~1260
Distance from spindle center to column	mm	686	439.5	439.5	439.5	549
Distance between two columns	mm	1650	2200	1650	2200	2700
X/Y/Z travel	mm	2000/1650/800	2200/2200/1000	3000/1650/800	3000/2200/1000	3000/2700/1000
X/Y/Z rapid traverse speed	m/min	8/10/10	12	12	12	12
Feed rate	mm/min	1~8000	1~8000	1~8000	1~8000	1~8000
Positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repeat positioning accuracy	mm	±0.003	±0.003	±0.003	±0.003	±0.003
Spindle motor power (continuous/overload)	kW	15/18.5	22/26	22/26	22/26	26/30
Spindle speed range	r/min	40~6000	40~6000	40~6000	40~6000	40~6000
Spindle taper		#50	#50	#50	#50	#50
Height of machine	mm	4500	5200	5200	5200	5500
Machine covers an area of size	mm	7500x5000	7000x5500	9000x5500	9000x5500	9000×6000
N.W/G.W	kg	27000/29000	32000/35000	37000/40000	37000/40000	48000/45000
Air pressure requirement	kgf/cm²	6.5	6.5	6.5	6.5	6.5
Current	KVA	40	40	50	50	50
Remark:Tool magazine is optional
