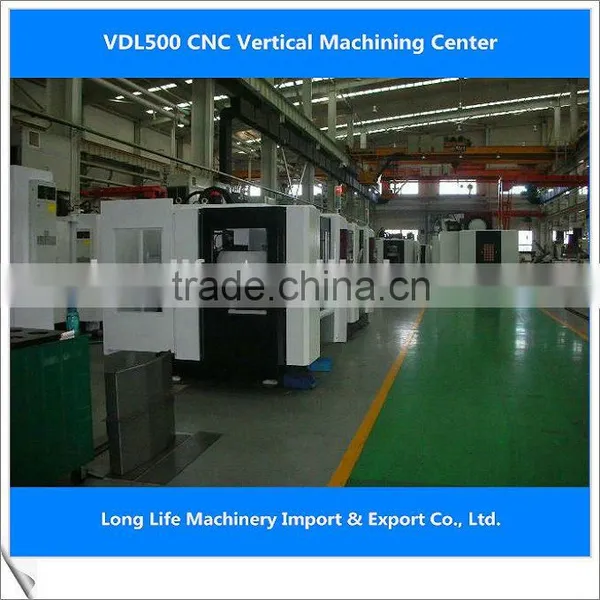

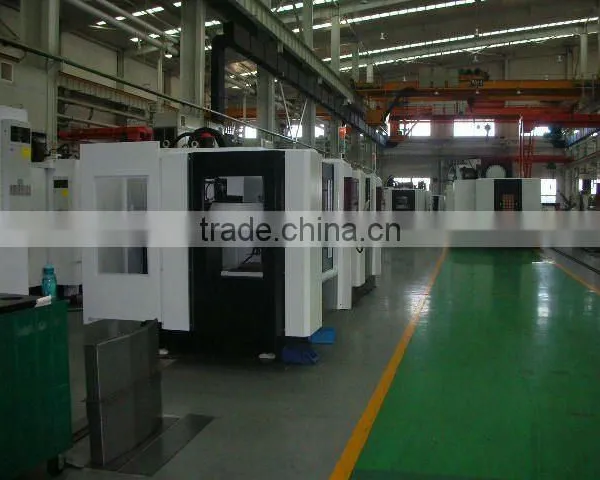

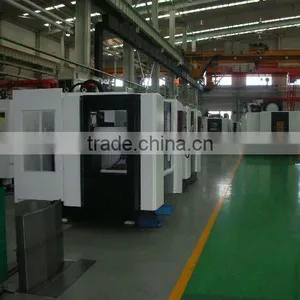

Help CenterVDL500 Small CE China Cnc Vertical Machining Center
Related Products
-
CE Certificate Box-Way Vertical Machining CenterUS$ 43,132 - 108,060MOQ: 1 Set -
VDF1800 Sliding Guide Way Cnc Vertical Machining Center With CEUS$ 115,132 - 178,060MOQ: 1 Set
-
Box Guide Way CNC Vertical Machining Center for Heavy MachiningUS$ 40,132 - 108,060MOQ: 1 Set
-
VDL Series CE Linear Way Vertical Machining CenterUS$ 34,780 - 108,060MOQ: 1 Set
-
CE 4-axis Linear Way Vertical Machining Center Hot-sale VDL600US$ 34,780 - 108,060MOQ: 1 Set
VDL500 small cnc vertical machining center Technical Data
1. With CE Certificate;
2. National Inspection-free products
3. Highly rigid and stable machine structure;
4. High precision linear on all three-axis;
5. High precision spindle and High spindle speed: 8000~10000rpm;
6. Fast and reliable tool changing mechanism;
7. Cooling system;
8. Multi-functional CNC control system, such as: FANUC, SIEMENS, FAGOR, REXROTH, MITSUBISHI, etc;
9. Main usage:Milling, boring, drilling, reaming and tapping can be performed in one set-up.
Specifications |
Unit |
VDL500 cnc vertical machining center |
Table (L × W) |
mm |
700×320 |
T-slot (Numbers × Width × Distance) (b/t slots) |
mm |
3×14×110 |
Table load Max |
kg |
150 |
Distance from spindle center line to column guide way surface |
mm |
430 |
Distance from spindle nose end face to table upper surface |
mm |
140~520 |
X/Y/Z travel |
mm |
450/350/380 |
X/Y/Z guide way type |
|
Linear way |
X/Y/Z rapid traverse speed |
m/min |
30/30/30 |
Feed rate |
mm/min |
1~10000 |
X/Y/Z servo motor power |
kW |
1.4/1.4/1.6 (1.2/1.2/1.8) (2.85/2.85/2.85) |
X/Y/Z servo motor torque |
N.m |
7/7/7 |
Positioning accuracy |
mm |
0.016 |
Repeat positioning accuracy |
mm |
0.006 |
Spindle motor power |
kW |
3.7/5.5 |
Spindle speed range |
r/min |
60~10000 |
Spindle taper |
|
#40(7/24) |
Tool magazine capacity / Type |
|
12/drum |
Tool adaptor type |
|
BT40 |
Max. Tool weight |
kg |
6 |
Max. Tool diameter/length |
mm |
80/200 |
Time of tool change (T-T) |
sec |
6~8 |
Air pressure requirement |
MPa |
0.6 |
Power requirement |
kW |
15 |
Overall dimension (L × W × H) |
mm |
2450×1590×2200 |
Net weight |
kg |
2000 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
