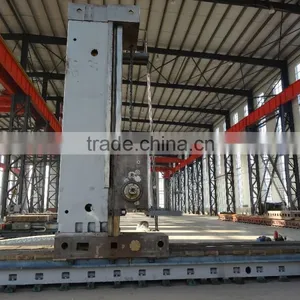

Floor Type Boring Machine Hot-sale TPX6216
Main technical parameter
Use and features of TPX6216 series of floor type boring machine
This machine is mainly used for milling holes for large and medium-sized parts as well as other processing such as hole drilling, expanding, reaming and plane milling. The radial tool post of facing head can be used for surfacing; if cooperated with rotary work table, it can be used for processing inner hole and outer circle with large diameter and short length. facer is installed on boring rod, which can be applied to the processing of workpiece plane milling. Bed of TPX6216/1,TPX6216/2 machine is a lengthened type.
Specifications |
Unit |
TPX6213 |
TPX6213/1 |
TPX6216 |
TPX6216/1 |
TPX6216/2 |
TPX6216/3 |
TPX6216/4 |
TPX6216/5 |
TPX6216/6 |
Diameter of boring spindle |
mm |
Φ130(5") |
Φ130(5") |
Φ160 (6") |
Φ160 (6") |
Φ160 (6") |
Φ160 (6") |
Φ160 (6") |
Φ160 (6") |
Φ160 (6") |
Taper hole of boring spindle |
|
Metric 80# |
Metric 80# |
Metric 80 |
Metric 80 |
Metric 80 |
Metric 80 |
Metric 80 |
Metric 80 |
Metric 80 |
Rotational speed of boring and milling spindle (stepless) |
r/min |
4~800 |
4~800 |
1.8~500 |
1.8~500 |
1.8~500 |
1.8~500 |
1.8~500 |
1.8~500 |
1.8~500 |
Feed range of boring spindle (stepless) |
mm/min |
0.01~8 |
0.01~8 |
0.45~1500 |
0.45~1500 |
0.45~1500 |
0.45~1500 |
0.45~1500 |
0.45~1500 |
0.45~1500 |
Maximum axial travel of boring spindle |
mm |
900 |
900 |
1200 (48") |
1200 (47") |
1200 (48") |
1200 (47") |
1200 (48") |
1200 (47") |
1200 (48") |
Distance from spindle centre to platform (min.) |
mm |
235 |
240 |
600 (24") |
600 (24") |
600 (24") |
600 (24") |
600 (24") |
600 (24") |
600 (24") |
Distance from spindle centre to platform (Max.) |
mm |
1500 |
1500 |
2600 (102") |
2600 (102") |
2600 (102") |
2600 (102") |
2600 (102") |
2600 (102") |
2600 (102") |
Maximum diameter of boring hole |
mm |
Φ350 |
Φ350 |
Φ750 (30") |
Φ750 (30") |
Φ750 (30") |
Φ750 (30") |
Φ750 (30") |
Φ750 (30") |
Φ750 (30") |
